Pilz

774314

774314 Pilz

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 774314 Pilz

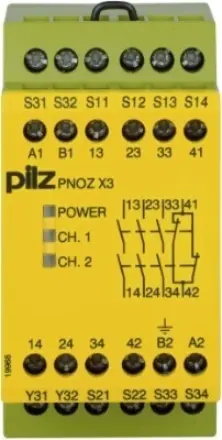

774314 Pilz - 774314 SAFETY RELAY PNOZ X3 110VAC 24VDC 3N/O 1N/C 1SO

Free Delivery to UK Mainland on orders over £25

Product Detail

Depth 121 mm
Evaluation inputs 2-channel
Height 87 mm
Model Basic device
Number of outputs, safety related, delayed, semiconductors 0
Number of outputs, safety related, delayed, with contact 0
Number of outputs, safety related, instantaneous, semiconductors 0
Number of outputs, safety related, instantaneous, with contact 3
Number of outputs, signalling function, delayed, semiconductors 0
Number of outputs, signalling function, delayed, with contact 0
Number of outputs, signalling function, instantaneous, semiconductors 0
Number of outputs, signalling function, instantaneous, with contact 1
Performance level acc. to EN ISO 13849-1 Level e
Rail mounting possible yes
Suitable for monitoring of emergency-stop circuits no
Suitable for monitoring of magnetic switches no
Suitable for monitoring of optoelectronic protection equipment no
Suitable for monitoring of position switches yes
Suitable for monitoring of proximity switches no
Suitable for monitoring of tactile sensors yes
Suitable for monitoring of valves yes
Supply voltage AC 50 Hz 110...110 V
Supply voltage AC 60 Hz 110...110 V
Supply voltage DC 24...24 V
Type of electric plug connection Screw connection
Voltage type of supply voltage AC/DC
Width 45 mm
With approval according to UL yes
With approval for BG BIA no
With detachable clamps no
With feedback circuit yes
With muting function no
With start input yes
