Schneider Electric

ZB4BA3

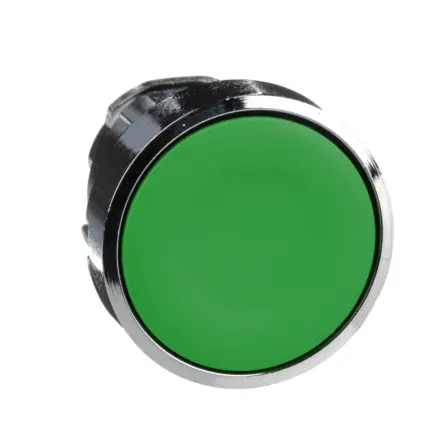

Schneider Electric ZB4BA3

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for Schneider Electric ZB4BA3

Schneider Electric ZB4BA3 - Push button head, metal, flush, green, Ã22, spring return, unmarked

Extended Description for Schneider Electric ZB4BA3

Schneider Electric ZB4BA3 - This Harmony XB4, green button head operates with a spring return mechanism.,This button head provides an ergonomic interface for controlling your machines.,It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K.,It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance.,It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.,Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2.62 Exc. VAT
£3.14 Inc. VAT

Manufacturer New

58 available
1 - 2 w.days
£6.30 Exc. VAT
£7.56 Inc. VAT

Main

range of product Harmony XB4
product or component type Head for non-illuminated push-button
Device short name ZB4
Bezel material Chromium plated metal
Mounting diameter 22.5 mm
Sale per indivisible quantity 1
Head type Standard
Shape of signaling unit head Round
Type of operator spring return
Operator profile Green flush, unmarked
cap/operator or lens colour Green

Complementary

CAD overall width 29 mm
CAD overall height 29 mm
CAD overall depth 28 mm
Mechanical durability 10000000 cycles
Electrical composition code C1 for <9 contacts using single blocks in front mounting,C2 for <9 contacts using single and double blocks in front mounting,C11 for <3 contacts using single blocks in front mounting,C15 for <1 contacts using single blocks in front mounting
Device presentation Basic element

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529,IP67,IP69,IP69K
NEMA degree of protection NEMA 13,NEMA 4X
IK degree of protection IK06 conforming to IEC 50102
Standards JIS C8201-5-1,UL 508,IEC 60947-5-5,CSA C22.2 No 14,IEC 60947-5-1,IEC 60947-1,IEC 60947-5-4,JIS C8201-1
Product certifications BV,CSA,DNV,LROS (Lloyds register of shipping),UL listed
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27,50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.800 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 28.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 300
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.939 kg
Unit Type of Package 3 P06
Number of Units in Package 3 2400
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 81.404 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
