Rittal

1039000

1039000 Rittal

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 1039000 Rittal

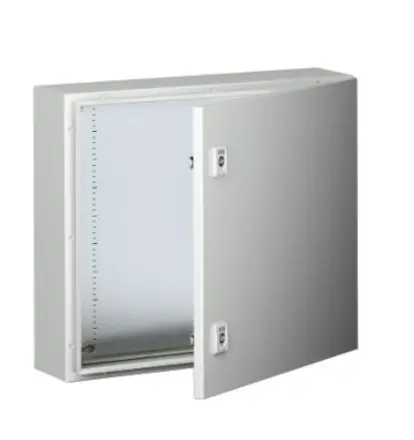

1039000 Rittal - Rittal AX Series RAL7035 Sheet Steel Enclosure, IP66, IK10, 600 x 380 x 210mm

Extended Description for 1039000 Rittal

1039000 Rittal - The AX compact enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX compact control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.

Free Delivery to UK Mainland on orders over £25

Specifications

Benefits More interior finishing options thanks to integrated housing cams in the 25 mm system grid in combination with the rail for interior finishing and our wide range of system accessories, Maintaining the protection class (UL approval) by mounting the rail for interior installation without drilling, Additional mounting level and increased load capacity due to base configuration rail , Easy planning and configuration with the Rittal configurator RiPanel
Protection category IP to EN 60 529 IP 66
IK code IK10
Material thickness - enclosure 1.25 mm
Color RAL 7035
Material thickness – mounting plate 2.5 mm
Height 380 mm
Width 600 mm
Material thickness - door 1.5 mm
Depth 210 mm
Protection category NEMA NEMA 1, 3R, 4, 12
Base material Carbon steel
Protection category IP to IEC 60 529 IP 66
Supply includes Housing with door(s)Flange (gland) plate(s) in enclosure baseMounting platePunched door stripLock: 3 mm double-bit
Number of doors 1
Weight/packaging unit 14.4 kg
Dimensions of mounting plate (W x H) 550 mmx355 mm
No. of locks 1
Packaging unit 1 pc(s).
Type rating according to UL 50E Type 1, 3R, 4, 12
Interchangeable door catch 1
