Rittal

3237110

3237110 Rittal

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 3237110 Rittal

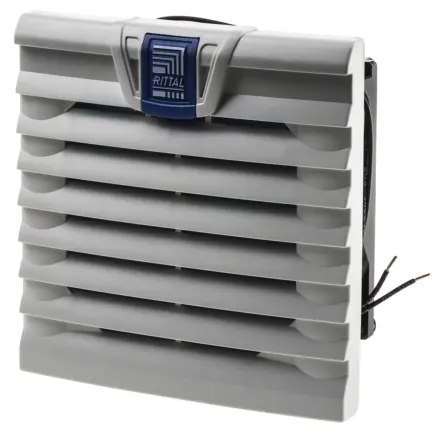

3237110 Rittal - Rittal Filter Fan, 115 V ac, AC Operation, 18m³/h Filtered, 25m³/h Unimpeded, IP54, 116.5 x 116.5mm

Free Delivery to UK Mainland on orders over £25

Specifications

Supply includes Complete unit ready to install, including fleece filter mat
Storage temperature range -30 C...70 C
Protection category IP to EN 60 529 IP54 with fleece filter, IP56 with fleece filter and hose-proof hood
Color RAL 7035
Installation depth 43 mm
Operating temperature range -15 C...55 C
Pre-fuse Miniature circuit-breaker/fuse:2A
Width 1165 mm
Protection category IP to IEC 60 529 IP54 with fleece filter, IP56 with fleece filter and hose-proof hood
Note A folded filter can optionally be used to increase the air throughput (see characteristic curve). This can be used with both the filter & roof-mounted fans and the exhaust filters., For the 3237.XXX filter fan, the electrical connection is made via 2 individual wires (length approx. 300 mm) on the unit, for all other filter fans, its made via a spring-loaded terminal
Height 1165 mm
Weight/packaging unit 0.48 kg
Fan Axial, shaded pole motor
Packaging unit 1 pc(s).
Rated operating voltage 115 V, 1~, 50 Hz/60 Hz
Protection category NEMA Type 12 with fleece filter, Type 3, 3R with fleece filter and hose-proof hood
