Schneider Electric

03154

03154 Schneider Electric

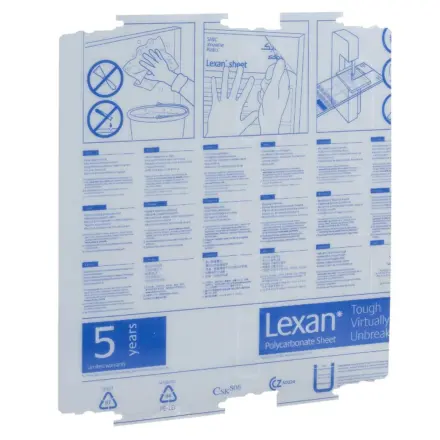

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 03154 Schneider Electric

03154 Schneider Electric - CLASS 2 INSULATING PLATE WIDTH 600/650

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma G,Prisma P
product or component type Insulating plate
accessory / separate part category Installation accessory
Range compatibility Prisma Prisma G enclosure,Prisma Prisma P cubicle
installation description Floor-standing enclosure - width 600 mm,Wall-mounted enclosure - width 600 mm,Cubicle - width 650 mm depth 400 mm,Pack enclosure - width 555 mm
Installed device Power meters: kilowatt-hour meters - vertical installation
Poles description 2 x 4P: kilowatt-hour meters vertical installation,3 x 2P: kilowatt-hour meters vertical installation
Number of vertical modules [50 mm] 9 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure,9 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure,9 module(s): kilowatt-hour meters in 650 mm Widecubicle,9 module(s): kilowatt-hour meters in 555 mm WidePack enclosure,6 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure,6 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure,6 module(s): kilowatt-hour meters in 650 mm Widecubicle,6 module(s): kilowatt-hour meters in 555 mm WidePack enclosure
Standards IEC 61439-2
Product certifications ASEFA

Complementary

Protective treatment Electrophoresis treatment and hot-polymerised polyester epoxy powder
Surface finish Matt,Smooth
Colour White (RAL 9001)
Width 600 mm
Height 420 mm
net weight 0.66 kg
Functional unit 600 mm Prisma G floor-standing enclosure power meters kilowatt-hour meters vertical 2P 3 6,600 mm Prisma G wall-mounted enclosure power meters kilowatt-hour meters vertical 2P 3 6,600 mm Prisma G floor-standing enclosure power meters kilowatt-hour meters vertical 4P 2 9,600 mm Prisma G wall-mounted enclosure power meters kilowatt-hour meters vertical 4P 2 9,650 mm 400 mm Prisma P cubicle power meters kilowatt-hour meters vertical 2P 3 6,650 mm 400 mm Prisma P cubicle power meters kilowatt-hour meters vertical 4P 2 9

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 52.0 cm
Package 1 Length 68.0 cm
Package 1 Weight 670.0 g
Unit Type of Package 2 P12
Number of Units in Package 2 24
Package 2 Height 81.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 28.8 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
