Schneider Electric

03170

03170 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 03170 Schneider Electric

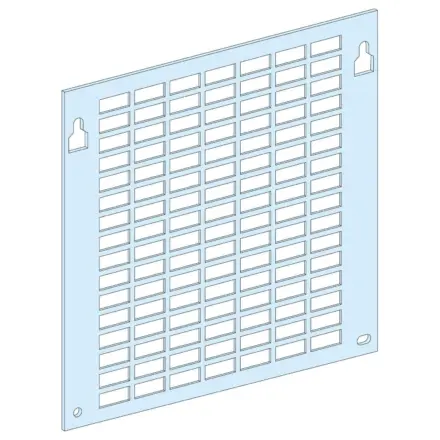

03170 Schneider Electric - SLOTTED MOUNTING PLATE W600 4M

Extended Description for 03170 Schneider Electric

03170 Schneider Electric - Flat slotted mounting plate for Prisma.,It is compatibility with Prisma G.,It could be installed in Floor-standing or Wall-mounted enclosure.,It has white (RAL 9001) colour.,It is suitbale for 4 50-mm vertical modules in Widefloor-standing enclosure.,It is certified by ASEFA.,It is compliant with both IEC 61439-2.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma G
product or component type Mounting plate
accessory / separate part category Installation accessory
Range compatibility Prisma Prisma G enclosure
installation description Floor-standing enclosure - width 600 mm,Wall-mounted enclosure - width 600 mm,Floor-standing enclosure - width 850 mm
Mounting plate description Flat slotted
Number of vertical modules [50 mm] 4 module(s) in 600 mm Widefloor-standing enclosure,4 module(s) in 600 mm Widewall-mounted enclosure,4 module(s) in 850 mm Widefloor-standing enclosure
Standards IEC 61439-2
Product certifications ASEFA

Complementary

Surface finish Galvanized
Width 600 mm
Height 200 mm
net weight 0.72 kg
Functional unit 600 mm Prisma G floor-standing enclosure 4 12.5 mm,600 mm Prisma G wall-mounted enclosure 4 12.5 mm,850 mm Prisma G floor-standing enclosure 4 12.5 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.1 cm
Package 1 Width 19.5 cm
Package 1 Length 46.8 cm
Package 1 Weight 720.0 g
Unit Type of Package 2 CAR
Number of Units in Package 2 10
Package 2 Height 20.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 7.98 kg
Unit Type of Package 3 P12
Number of Units in Package 3 120
Package 3 Height 105.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 95.76 kg

Contractual warranty

Warranty 18 months
