Schneider Electric

03172

03172 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 03172 Schneider Electric

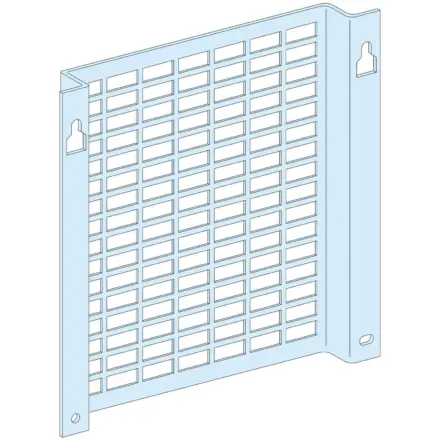

03172 Schneider Electric - RECESSED SLOTTED M.PLATE W600 6M

Extended Description for 03172 Schneider Electric

03172 Schneider Electric - Recessed slotted mounting plate for Prisma.,It is compatibility with Prisma G.,It could be used as installation accessory for Altistart, ATS01N.,It could be installed in 600 mm width Floor-standing or Wall-mounted enclosure.,It has white (RAL 9001) colour.,It is suitbale for 6 50-mm vertical modules in the enclosure.,It is certified by ASEFA.,It is compliant with both IEC 61439-2.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma G
product or component type Mounting plate
accessory / separate part category Installation accessory
Range compatibility Prisma Prisma G enclosure
installation description Floor-standing enclosure - width 600 mm,Wall-mounted enclosure - width 600 mm
Mounting plate description Recessed slotted
Installed device Altistart: ATS01N
Number of vertical modules [50 mm] 6 module(s): ATS01N in 600 mm Widefloor-standing enclosure,6 module(s): ATS01N in 600 mm Widewall-mounted enclosure
Standards IEC 61439-2
Product certifications ASEFA

Complementary

Surface finish Galvanized
Width 600 mm
Height 300 mm
net weight 1 kg
Functional unit 600 mm Prisma G floor-standing enclosure Altistart ATS01N 2 6 12.5 mm,600 mm Prisma G wall-mounted enclosure Altistart ATS01N 2 6 12.5 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD
