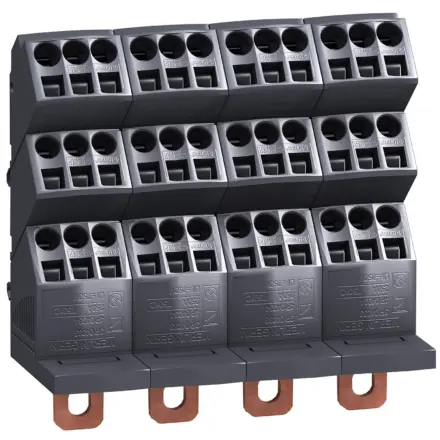

04034 Schneider Electric - LINERGY DP 4P D.BLK/COMPACT 250A 36HOLES

Extended Description for 04034 Schneider Electric

04034 Schneider Electric - Linergy DP distribution block for Prisma G.,It is compatibility with spacial enclosures.,The rated operational voltage is 690V AC.,The rated operational current is 250A.,It provides IPxx B degree of protection.,It is suitable for -25 to 55 °C ambient air operation temperature.,It could be connected on direct connection terminal and spring terminal by DIN rail or Prisma mounting plate mounting support.,It is suitbale for 4 poles, 3 pollution degree and III overvoltage category.,It provides 960 °C resistance to incandescent wire conforming to IEC 60695-2-11.,It is certified by ASEFA.,It is compliant with both IEC 61439-1 and IEC 61439-2.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Main

Range Linergy
range of product Linergy
product or component type Distribution block
Product name Linergy DP
Range compatibility Prisma Prisma G enclosure,Prisma Prisma P enclosure,Prisma Prisma PH enclosure,Prisma Prisma Pack 250 enclosure
accessory / separate part category Current distribution accessory
IP degree of protection IPxx B

Complementary

mounting support Prisma mounting plate,DIN rail
Installed device EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - horizontal installation,EasyPact: fixed CVS250 without earth leakage protection - control: toggle - horizontal installation,EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation,EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - horizontal installation,EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - horizontal installation,EasyPact: fixed CVS250 with earth leakage protection - control: toggle - horizontal installation,EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation,EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - horizontal installation,EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation,EasyPact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation,EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - vertical installation,EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - vertical installation,EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - vertical installation,EasyPact: fixed CVS250 with earth leakage protection - control: toggle - vertical installation,EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - vertical installation,EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation,ComPact: fixed INS250 - control: direct front rotary handle - vertical installation,ComPact: fixed INS250 - control: lateral handle - vertical installation,ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV250 - control: lateral handle - vertical installation,ComPact: fixed INV250 - control: direct front rotary handle - vertical installation,ComPact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX250 without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX250 with earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation,ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation,ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation,ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation,ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation,ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - horizontal installation,ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - horizontal installation,ComPact: plug-in NSX250 without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed INV100 - control: direct front rotary handle - vertical installation,ComPact: fixed INV200 - control: direct front rotary handle - vertical installation,ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV160 - control: direct front rotary handle - vertical installation,ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation
Poles description 4P
[Ue] rated operational voltage 690 V AC
[Ui] rated insulation voltage 750 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current 250 A at 40 °C
[Icw] rated short-time withstand current 8.5 kA for 1 s
[Ipk] rated peak withstand current 30 kA
I²t on activation 72250000 A².s
Connections - terminals Supply: direct connection120 mm²,Distribution: spring terminal (per phase) , 6 x 4…10 mm² (flexible) ,Distribution: spring terminal (per phase) , 3 x 6…16 mm² (flexible) ,Distribution: spring terminal (per phase) , 6 x 4…10 mm² (rigid) ,Distribution: spring terminal (per phase) , 3 x 6…16 mm² (rigid)
Height 140 mm
Width 140 mm
Depth 64 mm
net weight 0.96 kg

Environment

Pollution degree 3
Overvoltage category III
Resistance to incandescent wire 960 °C conforming to IEC 60695-2-11
Standards IEC 60947-7-1,IEC 61439-1, inside Prisma,IEC 61439-2, inside Prisma
Product certifications ASEFA
Ambient air temperature for operation -25…55 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 14.5 cm
Package 1 Length 15.8 cm
Package 1 Weight 950.0 g
Unit Type of Package 2 CAR
Number of Units in Package 2 10
Package 2 Height 15.5 cm
Package 2 Width 29.0 cm
Package 2 Length 34.0 cm
Package 2 Weight 9.55 kg
Unit Type of Package 3 P06
Number of Units in Package 3 200
Package 3 Height 94.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 192.0 kg

Contractual warranty

Warranty 18 months
