Schneider Electric

04404

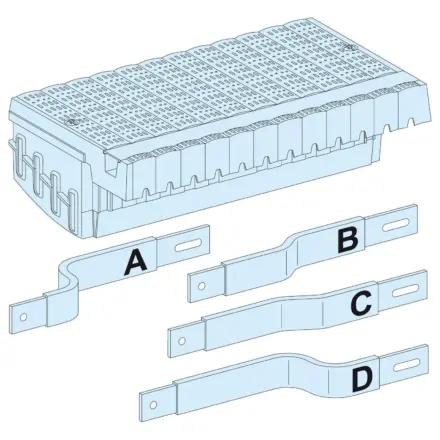

04404 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 04404 Schneider Electric

04404 Schneider Electric - LINERGY FC DISTRIBUTION BLOCK FOR COMPACT NSX250 4P TOGGLE/FIXED+CONNECTION

Extended Description for 04404 Schneider Electric

04404 Schneider Electric - Linergy FC device feeder for Prisma G.,It is compatibility with Prisma P.,The rated insulation voltage is 750V AC.,The rated operational current is 675A at 35 °C.,It provides prefabricated flexible connection to Linergy busbars and black surface treatment.,It provides 675 A at 40 °C, 615 A at 60 °C and 570 A at 70 °C permissible current.,It could be installed in the 650 mm width cubicle.,Its installation directions is horizontal on circuit breaker.,Sold in lots of 1 unit.,It is certified by ASEFA and KEMA.,It is compliant with both IEC 61439-1 and IEC 61439-2.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Main

Range Linergy
range of product Linergy
product or component type Device feeder
Product name Linergy FC
accessory / separate part category Connection accessory
Range compatibility Prisma Prisma P cubicle
Provided equipment Prefabricated flexible connection to Linergy busbars

Complementary

installation description Cubicle - width 650 mm
Number of devices 3 (4P)
Poles description 4P
Installed device ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation,ComPact: fixed INS250 - control: direct front rotary handle - vertical installation,ComPact: fixed INV250 - control: direct front rotary handle - vertical installation
mounting support Mounting plate
Installation direction Horizontal
[Ui] rated insulation voltage 750 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current 675 A at 40 °C
[Ue] rated operational voltage 690 V
[Ipk] rated peak withstand current 50 kA
I²t on activation 25000000 A².s
Permissible current 675 A at 40 °C,615 A at 60 °C,570 A at 70 °C
Connections - terminals Supply: flexible bars (phase / neutral) , 32 x 5 mm,Outgoer: plug in (phase / neutral) , 3 outgoers
Standards IEC 61439-1,IEC 61439-2
Product certifications KEMA,ASEFA
Quantity per set Set of 1
Length 440 mm
Height 132 mm
Depth 235 mm
net weight 8 kg
Colour Black

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15 cm
Package 1 Width 24 cm
Package 1 Length 46 cm
Package 1 Weight 6.57 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
