Description for 04716 Schneider Electric

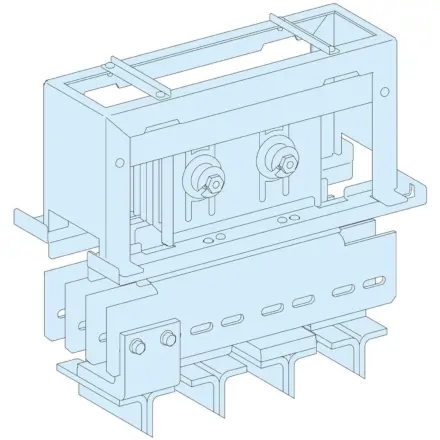

04716 Schneider Electric - CANALIS Connection 1600A MTZ2/NW 4P Prisma P

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma P
product or component type Interface and connection Canalis
product name Prisma Prisma P enclosure
accessory / separate part category Interface accessory
Standards IEC 61439-2,IEC 61439-1
Product certifications ASEFA

Complementary

Cubicle-device connection KT with Canalis
Poles description 4P
installation description Cubicle - width 650 mm
Cubicle depth 600 mm: front,600 + 400 mm: rear
Installed device Masterpact: drawout NW08...16 - control: toggle vertical installation,Masterpact: fixed NW08...16 - control: toggle vertical installation
[Ie] rated operational current 1600 A
[In] rated current 1600 A
Colour Stainless steel
Height 350 mm
Width 575 mm
Depth 420 mm
net weight 49.9 kg
Quantity per set Set of 1
functional unit 650 mm 600 mm Prisma P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on Canalis 27,650 mm 1000 mm Prisma P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 rear connection on Canalis 17,650 mm 600 mm Prisma P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on Canalis 27,650 mm 1000 mm Prisma P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 rear connection on Canalis 16

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 60.0 cm
Package 1 Width 60.0 cm
Package 1 Length 80.0 cm
Package 1 Weight 50.0 kg

Contractual warranty

Warranty 18 months
