Schneider Electric

04735

04735 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 04735 Schneider Electric

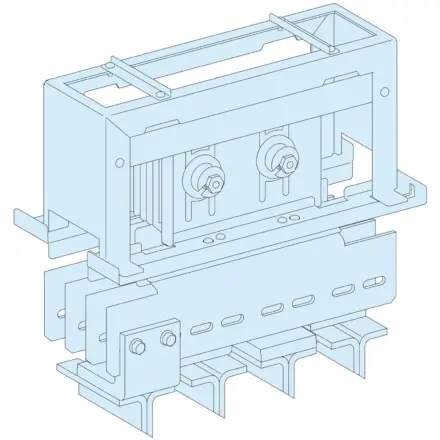

04735 Schneider Electric - CANALIS Connection 3200A MTZ2/NW 3P Prisma P

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma P
product or component type Interface and connection Canalis
product name Prisma Prisma P enclosure,Canalis Canalis KT busbar trunking,Masterpact MasterPact NW circuit breaker
accessory / separate part category Interface accessory
Standards IEC 61439-2, inside enclosure,IEC 61439-1, inside enclosure
Product certifications ASEFA

Complementary

Cubicle-device connection KT with Canalis
Poles description 3P
installation description Cubicle - width 650 mm
Cubicle depth 600 mm: front,600 + 400 mm: rear
Installed device Masterpact: drawout NW32 - control: toggle vertical installation,Masterpact: fixed NW32 - control: toggle vertical installation
[Ie] rated operational current 3200 A
Colour Stainless steel
Height 350 mm
Width 575 mm
Depth 450 mm
net weight 38 kg
Quantity per set Set of 1
functional unit 650 mm 600 mm Prisma P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on Canalis 28,650 mm 1000 mm Prisma P cubicle Masterpact NW32 drawout toggle vertical 3P 1 rear connection on Canalis 17,650 mm 600 mm Prisma P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on Canalis 28,650 mm 1000 mm Prisma P cubicle Masterpact NW32 fixed toggle vertical 3P 1 rear connection on Canalis 16

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 60.0 cm
Package 1 Width 60.0 cm
Package 1 Length 80.0 cm
Package 1 Weight 38.1 kg

Contractual warranty

Warranty 18 months
