Description for 04966 Schneider Electric

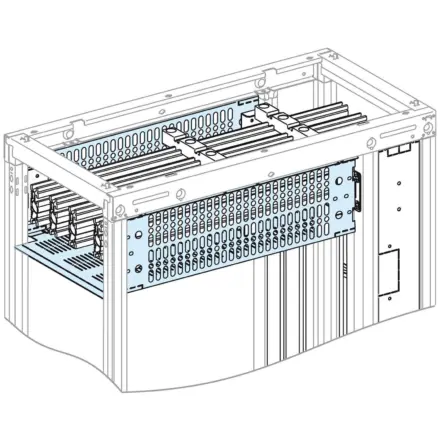

04966 Schneider Electric - Form 2 cover for horizontal busbars LGYE 32/40 or BS 3200A, W650 mm, D600 mm

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma P
product or component type Partition
accessory / separate part category Insulation accessory
Range compatibility Prisma Prisma P,Linergy Linergy BS busbar,Linergy Linergy LGYE busbar
Product specific application To partition horizontal busbars
Cubicle partitioning form Form 2

Complementary

Enclosure/cubicle width 650 mm
Enclosure/cubicle description Cubicle 4000A
installation description Cubicle 4000A - width 650 mm, depth 600 mm
Product destination For 600 mm deep framework
Cubicle depth 600 mm
Height 200 mm
Colour White (RAL 9001)
Surface finish Smooth,Matt,Powder coated
Protective treatment Electrophoresis treatment and hot-polymerised polyester epoxy powder
colour White
Colour code RAL 9001
net weight 3.7 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 35.0 cm
Package 1 Length 57.5 cm
Package 1 Weight 3.748 kg
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 11.244 kg
Unit Type of Package 3 P12
Number of Units in Package 3 36
Package 3 Height 102.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 134.928 kg

Contractual warranty

Warranty 18 months
