Schneider Electric

04976

04976 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 04976 Schneider Electric

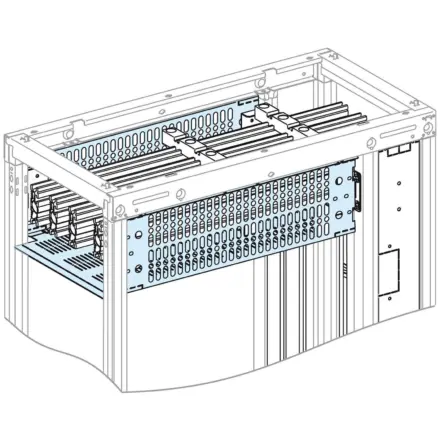

04976 Schneider Electric - Form 2 cover for horizontal busbars LGYE 2500A or BS 3200A, W650 mm, D400 mm

Extended Description for 04976 Schneider Electric

04976 Schneider Electric - Cover for Prisma P.,The cubicle partitioning form is Form 1.,It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment.,It could be installed in width 650 mm, depth 400 mm cubicle with horizontal busbar installed device.,It has matt or smooth surface finish.,Sold in lots of 1 unit.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma P
product or component type Cover
accessory / separate part category Insulation accessory
Range compatibility Prisma Prisma P framework
Cubicle partitioning form Form 2

Complementary

installation description Cubicle - width 650 mm, depth 400 mm
Installed device Horizontal busbar
Quantity per set Set of 1
Height 150 mm
net weight 2.74 kg
Surface finish Matt,Smooth
Protective treatment Electrophoresis treatment and hot-polymerised polyester epoxy powder

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 35.0 cm
Package 1 Length 57.5 cm
Package 1 Weight 2.18 kg
Unit Type of Package 2 S04
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 9.65 kg
Unit Type of Package 3 P12
Number of Units in Package 3 48
Package 3 Height 102.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 104.64 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
