Schneider Electric

08345

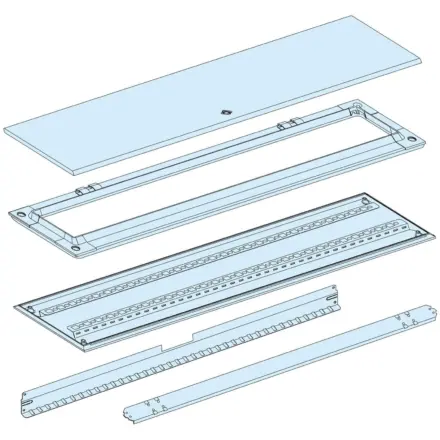

08345 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 08345 Schneider Electric

08345 Schneider Electric - DUCT (REAR ENCLOSURE+PLAIN DOOR) W300 19M PRISMA G IP55

Extended Description for 08345 Schneider Electric

08345 Schneider Electric - Rear enclosure plus plain door for Prisma G.,It applied to low voltage electrical distribution.,It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment.,It could be delivered as functional enclosure in kit form without front plate.,It provides IP protection which includes IP55 with door.,It provides IK protection which includes IK10 with door conforming to EN/IEC 62262.,It could be installed in 300 mm width wall mounted duct.,It has matt or smooth surface finish and white (RAL 9001) colour.,It is suitbale for 19 50-mm vertical modules and 10 18-mm modules per row.,Sold in lots of 1 unit.,It can be combined side by side and one on top of another.,It provides 1 x door for enclosure.,It is certified by seismic tests which 2.5G conforming to IEC 60068-2-57.,It is compliant with IEC 62208, IEC 61439-1 and IEC 61439-2.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Main

Range Prisma
range of product Prisma G
product or component type Door,Rear panel
device application Low voltage electrical distribution
Enclosure type Functional enclosure delivered in kit form
enclosure mounting Surface
Provided equipment 1 x door for enclosure
Additional information Can be combined side by side and one on top of another
type of front plate Without
Number of vertical modules [50 mm] 19
Number of 18 mm modules per row 10
Standards IEC 62208,IEC 61439-2,IEC 61439-1

Complementary

[Ui] rated insulation voltage 1000 V
[In] rated current 630 A at 40 °C conforming to IEC 61439-2
Electrical insulation class Class I
Protective treatment Electrophoresis treatment and hot-polymerised polyester epoxy powder
Surface finish Matt,Smooth
Colour White (RAL 9001)
Width 300 mm
Height 1050 mm
Depth 260 mm
net weight 17.84 kg
Quantity per set Set of 1

Environment

IP degree of protection IP55 with door
IK degree of protection IK10 with door conforming to EN/IEC 62262
Mechanical robustness Seismic tests - 2.5G conforming to IEC 60068-2-57

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 37.000 cm
Package 1 Length 104.000 cm
Package 1 Weight 17.700 kg
Unit Type of Package 2 P12
Number of Units in Package 2 8
Package 2 Height 58.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 142.720 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD
