Schneider Electric

10286

10286 Schneider Electric

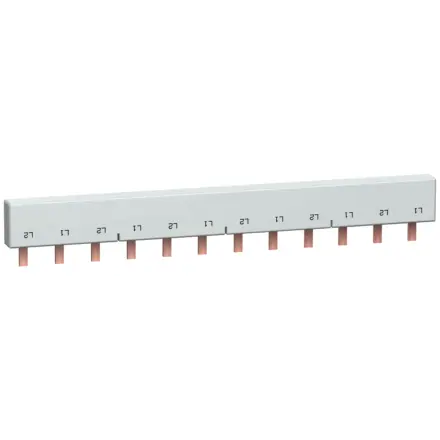

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 10286 Schneider Electric

10286 Schneider Electric - Multi9 - comb busbar - 2L - 18 mm pitch - 12 modules - 100A

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£9.44 Exc. VAT
£11.33 Inc. VAT

Main

Range Multi9
product or component type Comb busbar
mounting mode Horizontal
accessory / separate part category Connection accessory
Lines description 2L
Length in 18 mm modules 12
Standards EN/IEC 61439-1,UL 1077

Complementary

Number of ways 6 ways 2 L
Poles configuration for 1 way 1 x 2P
Connection pitch 18 mm
Connector type Tooth
Distance between way 36 mm
Marking L1 L2
Insulation Insulated
Device presentation Uncuttable
[Ie] rated operational current 100 A at 40 °C
[Ue] rated operational voltage 277 V AC Ph/N,480 V AC Ph/Ph
[Ui] rated insulation voltage 690 V AC
[Uimp] rated impulse withstand voltage 12 kV
Mounting location Top on tunnel type terminals
9 mm pitches 24
Width 216 mm
Colour Light grey (RAL 7035)
Range compatibility Multi9 Multi9 C60SP

Environment

Fire resistance 960 °C ( 30 s )

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.300 cm
Package 1 Width 5.500 cm
Package 1 Length 21.500 cm
Package 1 Weight 94.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 72
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.873 kg

Contractual warranty

Warranty 18 months
