Schneider Electric

15483

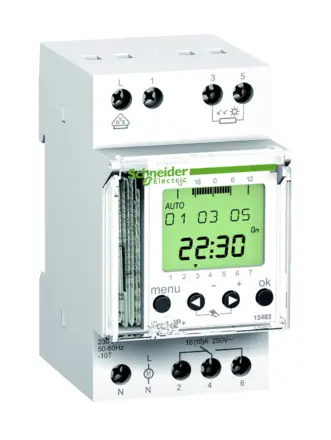

15483 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 15483 Schneider Electric

15483 Schneider Electric - cartridge C1 Master-350 for surge arrester PRD1 Master

Extended Description for 15483 Schneider Electric

15483 Schneider Electric - This Acti9 product is a cartridge C1 Master-350 for surge arrester PRD1 Master.,The Imax maximum discharge current is 20kA. The In nominal discharge current is 20kA.,This product is compatible with TT and TN earthing system.,The Uc maximum continuous operating voltage is 350VAC.,The Up Voltage protection level is 1.5kV.,It can be plugged into a surge protecting device module. Its width is pitches of 9mm.,The product color is anthracite grey (RAL7016). The dimensions are (W) 36mm x (H) 50mm x (D) 57mm.,According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure.,The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C.,It is compliant with IEC 61643-1 and EN 61643-11 standards.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£553.97 Exc. VAT
£664.76 Inc. VAT

Main

range of product Acti9
Product name Acti9 IC
product or component type Programmable twilight switch with time switch function
Device short name IC2000P+
device application Building
Provided equipment wall-mounted cell
Load type 230 V AC halogen lamp: 2300 W,20 x 58 W dual mounted fluorescent tube with conventional ballast,10 x 100 W non-corrected fluorescent tube with conventional ballast,10 x 36 W parallel-corrected fluorescent tube with conventional ballast,10 x 100 W serial-corrected fluorescent tube with conventional ballast,2 x 100 W parallel-corrected fluorescent tube with conventional ballast,20 x 58 W non-corrected fluorescent tube with conventional ballast,20 x 58 W serial-corrected fluorescent tube with conventional ballast,26 x 36 W non-corrected fluorescent tube with conventional ballast,26 x 36 W serial-corrected fluorescent tube with conventional ballast,3 x (2 x 58 W) dual mounted fluorescent tube with electronic ballast,26 x 36 W dual mounted fluorescent tube with conventional ballast,10 x 100 W dual mounted fluorescent tube with conventional ballast,5 x (2 x 36 W) dual mounted fluorescent tube with electronic ballast,6 x 58 W fluorescent tube with electronic ballast,6 x 58 W parallel-corrected fluorescent tube with conventional ballast,7 x 11 W fluocompact lamp with electronic ballast,7 x 15 W fluocompact lamp with electronic ballast,7 x 20 W fluocompact lamp with electronic ballast,9 x 7 W fluocompact lamp with electronic ballast,9 x 36 W fluorescent tube with electronic ballast, parallel-corrected mercury and sodium vapour lamps: 250 VA, 230 V AC incandescent lamp: 2600 W
Battery type Lithium
User language French,Spanish,Dutch,Finnish,Swedish,Portuguese,German,Italian,English

Complementary

Number of channels 1
Power consumption in VA 3 VA
[Ue] rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current 10 A - 250 V AC pf = 0.6,16 A - 250 V AC pf = 1
Electrical insulation class Class II
Maximum number of programming range 42
Minimum interval duration between 2 cycles 1 min
Function available Coupling with time switch functions,Automatic time changeover
Control type By brightness detection
Display type Backlit LCD
Time delay range 80 s (by default),20...140 s (on closing),20...140 s (on contact breaking)
Power reserve 5...6 years time and program saving
Type of setting Weekly programming
light intensity adjustment 350…2100 lux,2…50 lux,60…300 lux
Connections - terminals 1 x 6 mm² screw terminal
Cable stiffness Flexible,Rigid
Mounting support DIN rail
9 mm pitches 5
Height 83.5 mm
Width 45 mm
Depth 65 mm
net weight 323 g
Market segment Residential,Small commercial
compatibility code IC2000P+

Environment

Ambient air temperature for operation -20…50 °C
IP degree of protection IP20 B,IP55
Standards EN 60730-1,EN 60529

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9 cm
Package 1 Width 9 cm
Package 1 Length 11 cm
Package 1 Weight 0.351 kg

Contractual warranty

Warranty 18 months
