Schneider Electric

16330

16330 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 16330 Schneider Electric

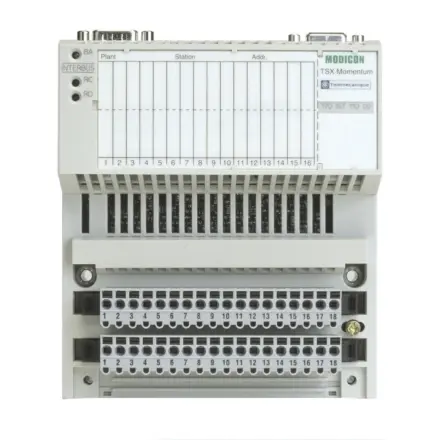

16330 Schneider Electric - Modicon Momentum - Interbus communication adaptor - twisted pair

Extended Description for 16330 Schneider Electric

16330 Schneider Electric - This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture.,The Interbus communication adaptor supports ring topology.,It offers twisted pair cable transmission support medium and 500kbps data transmission rate.,The adaptor is accessible through the continuous shift register and master/slave method.,It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus.,It is an IP20 rated product.,It weighs 0.07kg.,The main application of this module is infrastructures and energy, material handling, simple machine control.,This product is certified by CE, FM Class 1 Division 2, CSA and UL.,Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications.,System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£196.82 Exc. VAT
£236.18 Inc. VAT

Main

range of product Multi9
Product name Multi9 PRD1
product or component type Surge arrester with pluggable cartridge
Device short name PRD1 25r
device application Distribution
Standards EN 61643-11:2012,IEC 61643-11:2011
Product certifications CE
Quality labels KEMA-KEUR
Poles description 1P + N
Remote signalling With
Signal contacts composition 1 SD (1 C/O)
Surge arrester type Electrical distribution network
Earthing system TT,TN-S

Complementary

Surge arrester class type Type 1 + 2
Surge arrester technology MOV,Spark gap
[Ue] rated operational voltage 230 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current Common mode: 100 kA (N/PE),Differential mode: 25 kA (L/N)
[Iimp] impulse current Common mode: 100 kA N/PE 50 A.s,Differential mode: 25 kA L/N 12.5 A.s
[Uc] maximum continuous operating voltage Differential mode: 350 V L/N,Common mode: 350 V N/PE
Maximum [Up] voltage protection level Common mode <1.5 kV type 2 N/PE,Differential mode <1.5 kV type 2 L/N
[Ifi] follow current 25 kA differential mode L/N,0.1 kA common mode N/PE
[Isccr] short-circuit current rating 25 kA
Disconnector device type Associated fuse gG 315 A up to Isc = 25 kA,Associated circuit breaker NSXm 100E TM-D up to Isc = 16 kA,Associated circuit breaker NSXm 100B TM-D up to Isc = 25 kA,Associated circuit breaker Compact NSX100B TM-D up to Isc = 25 kA
Signalling circuit voltage 1.5 A/250 V AC 50/60 Hz
Mounting mode Clip-on (DIN rail)
9 mm pitches 8
Height 90 mm
Width 71.6 mm
Depth 70 mm
net weight 0.77 kg
Colour Anthracite grey (RAL 7016)
Material PBT (polybutylene terephthalate)
Connections - terminals Tunnel type terminal (downside) 2.5…35 mm²,Tunnel type terminal (upside) 2.5…35 mm²
Tightening torque 4.5 N.m

Environment

IK degree of protection IK05 conforming to IEC 62262
Relative humidity 5…90 %
Operating altitude 2000 m
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…80 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 7.5 cm
Package 1 Length 11.0 cm
Package 1 Weight 668.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.862 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD
