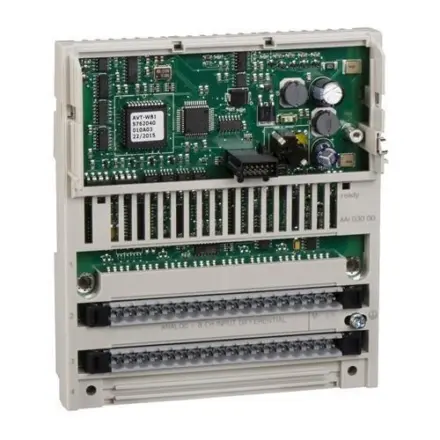

170AAI03000

170AAI03000 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 170AAI03000 Schneider Electric

170AAI03000 Schneider Electric - NG125 - circuit breaker - NG125N - 4P - 25A - C curve

Extended Description for 170AAI03000 Schneider Electric

170AAI03000 Schneider Electric - This Acti9 NG125N is a low voltage circuit breaker.,It is a 4P circuit breaker with 4 protected poles, 25A rated current and C tripping curve.,The rated short circuit breaking capacity goes up to 25kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard and 25kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard.,It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.,This miniature circuit breaker protects circuits against short circuit and overload current.,It is suitable for isolation in the industrial sector according to IEC/EN 60947-2 standard.,The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker.,It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.,The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 690VAC.,The Uimp rated impulse withstand voltage is 8kV. The operating frequency is 50Hz or 60Hz.,It is DIN rail mountable. Its width is 12 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV.,The dimensions are (W) 108mm x (H) 103mm x (D) 81mm. The weight is 0.96kg.,It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals in enclosure.,The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 70°C.

Free Delivery to UK Mainland on orders over £25

Manufacturer New

2 available
1 - 2 w.days
£1,350.47 Exc. VAT
£1,620.56 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£560.02 Exc. VAT
£672.03 Inc. VAT

Main

range of product Modicon Momentum automation platform
product or component type Analogue input base
Analogue input number 8
Analogue input type Differential
Analogue input range +/- 20 mA 14 bits + sign 250 kOhm,4...20 mA 15 bits + sign 250 kOhm,+/- 10 V 14 bits + sign > 0.1 kOhm,+/- 5 V 14 bits + sign > 0.1 kOhm,1...5 V 15 bits + sign > 0.1 kOhm

Complementary

Data format Full 16 bits signed
Absolute accuracy error +/- 0.13 % full scale 25 °C 1...5 V,+/- 0.19 % full scale 60 °C 1...5 V,+/- 0.21 % full scale 25 °C +/- 5 V,+/- 0.26 % full scale 60 °C +/- 5 V,+/- 0.27 % full scale 25 °C +/- 10 V,+/- 0.27 % full scale 25 °C 4...20 mA,+/- 0.32 % full scale 25 °C +/- 20 mA,+/- 0.32 % full scale 60 °C +/- 10 V,+/- 0.38 % full scale 60 °C 4...20 mA,+/- 0.41 % full scale 60 °C +/- 20 mA
Conversion time 12 ms 8
Isolation between channels +/- 200 V DC for 1 minute
Isolation between channels and ground 500 V AC for 1 minute
Isolation between channels and bus 500 V AC for 1 minute
Permissible common mode voltage 100 V 47...63 Hz DC between channels to ground,250 V 47...63 Hz AC between channels to ground
Common mode rejection > 80 dB between channels to ground
External power requirement < 382 mA DC,20.4...28.8 V DC,24 V DC
Reverse polarity protection Internal
marking CE
Local signalling 1 LED (green) for ready,8 LEDs for channel status
Electrical connection 2 connectors for removable terminal blocks
Depth 47.5 mm
Height 125 mm
Width 141.5 mm
net weight 0.215 kg

Environment

Standards EN 50081-2,IEC 1131
Product certifications FM Class 1 Division 2,CSA,UL
Protective treatment TC
Resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2,8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 95 % without condensation
Operating altitude <= 5000 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 410.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.130 kg
Unit Type of Package 3 P06
Number of Units in Package 3 80
Package 3 Height 75.000 cm
Package 3 Width 40.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 49.850 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

CAD

Environmental disclosure
