Schneider Electric

29448

29448 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 29448 Schneider Electric

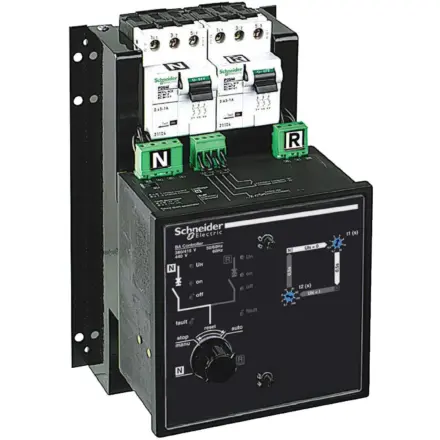

29448 Schneider Electric - interface and automatic controller - ACP + UA - 110..127 V

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£808.96 Exc. VAT
£970.75 Inc. VAT

Main

range of product NSX100...250,MasterPact NW,MasterPact NT,NSX400...630,Compact NS630b...1600,Compact NS100...630
Range ComPact
product or component type Interface and control unit
accessory / separate part category Interlocking accessory
Range compatibility ComPact ComPact NS circuit breaker,ComPact ComPact NSX circuit breaker,Masterpact MasterPact NT circuit breaker,Masterpact MasterPact NT switch disconnector,Masterpact MasterPact NW circuit breaker,Masterpact MasterPact NW switch disconnector
Device short name ACP + UA
[Us] rated supply voltage 110...127 V AC at 50/60 Hz

Complementary

Operating mode Stop (both normal and replacement source off),Forced operation on normal source,Forced operation on replacement source,Automatic operation
Interlocked device MasterPact NT,Compact NS100...630,MasterPact NW,NSX400...630,Compact NS630b...1600,NSX100...250
selection modes Circuit breaker on N,Circuit breaker on R
Test function By pressing the test button on the front of the controller
Complementary function Additional contact: transfer to replacement source only if contact is closed,Setting of maximum startup time for the replacement source,Forced normal source if replacement source not operational during peak-tariff,Selection of type of normal source (single-phase or three-phase),Voluntary transfer to replacement source (e.g. energy management commands)
Local signalling Off,Fault trip,On
Input type Contacts customer voluntary order to transfer to source R
Output type Contacts customer: indication of operation in automatic or stop mode
[Ith] conventional free air thermal current 8 A
[Ie] rated operational current AC-12: 4 A AC 440 V,AC-12: 5 A AC 380/415 V,AC-12: 8 A AC 110 V,AC-12: 8 A AC 220/240 V,AC-12: 8 A AC 24 V,AC-12: 8 A AC 48 V,AC-13: 6 A AC 110 V,AC-13: 6 A AC 220/240 V,AC-13: 7 A AC 24 V,AC-13: 7 A AC 48 V,AC-14: 4 A AC 110 V,AC-14: 4 A AC 220/240 V,AC-14: 5 A AC 24 V,AC-14: 5 A AC 48 V,AC-15: 3 A AC 220/240 V,AC-15: 4 A AC 110 V,AC-15: 5 A AC 24 V,AC-15: 5 A AC 48 V,DC-12: 0.4 A DC 250 V,DC-12: 0.6 A DC 110 V,DC-12: 2 A DC 48 V,DC-12: 8 A DC 24 V,DC-13: 2 A AC 24 V
Product compatibility Compact NS630b...1600,Compact NSX100...250,Compact NSX400...630

Environment

Standards IEC 947-5-1
IP degree of protection IP20 connectors: conforming to EN 60529,IP40 front: conforming to EN 60529,IP30 side: conforming to EN 60529
IK degree of protection Front: IK07 conforming to EN 50102

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 16.5 cm
Package 1 Length 29.0 cm
Package 1 Weight 4.348 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
