Description for 29470 Schneider Electric

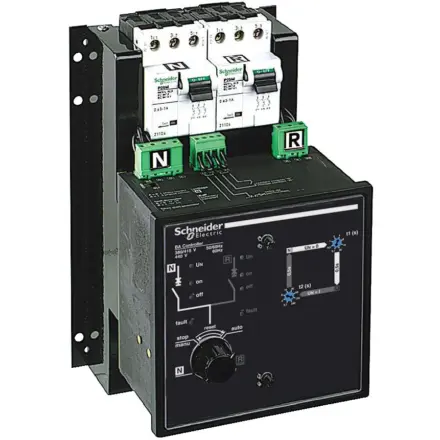

29470 Schneider Electric - remote controlled source changeover, Transferpact, ACP plate and BA controller, 220 VAC to 240 VAC 50/60 Hz

Extended Description for 29470 Schneider Electric

29470 Schneider Electric - It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices.,It is composed of an ACP plate and of an integrated BA controller.,This ACP provides in a single unit the protection of the controller, the control and the connection to the devices.,The BA controller is used to create simple source-changeover system that switch from one source to another depending on the presence of voltage UN on the âNormalâ source.,The BA controller is generally used to manage two permanent sources.,The control voltage is from 220VAC to 240VAC 50/60Hz.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£880.98 Exc. VAT
£1,057.18 Inc. VAT

Main

range of product MasterPact NT,NSX100...250,Compact NS100...630,MasterPact NW,Compact NS630b...1600,NSX400...630
product or component type Interface and control unit
accessory / separate part category Interlocking accessory
Range compatibility ComPact ComPact NS circuit breaker,ComPact ComPact NSX circuit breaker,Masterpact MasterPact NT circuit breaker,Masterpact MasterPact NW circuit breaker
Device short name ACP + BA
[Us] rated supply voltage 220...240 V AC at 50/60 Hz

Complementary

Operating mode Automatic operation,Forced operation on replacement source,Forced operation on normal source,Stop (both normal and replacement source off)
Interlocked device NSX400...630,MasterPact NW,NSX100...250,MasterPact NT,Compact NS630b...1600,Compact NS100...630
selection modes Circuit breaker on N,Circuit breaker on R
Test function By opening the P25M circuit breaker supplying the controller
Complementary function Additional contact: transfer to replacement source only if contact is closed,Voluntary transfer to replacement source (e.g. energy management commands)
Local signalling Off,On,Fault trip
Input type Contacts customer voluntary order to transfer to source R
Output type Contacts customer: indication of operation in automatic or stop mode
[Ith] conventional free air thermal current 8 A
[Ie] rated operational current AC-12: 4 A AC 440 V,AC-12: 5 A AC 380/415 V,AC-12: 8 A AC 110 V,AC-12: 8 A AC 220/240 V,AC-12: 8 A AC 24 V,AC-12: 8 A AC 48 V,AC-13: 6 A AC 110 V,AC-13: 6 A AC 220/240 V,AC-13: 7 A AC 24 V,AC-13: 7 A AC 48 V,AC-14: 4 A AC 110 V,AC-14: 4 A AC 220/240 V,AC-14: 5 A AC 24 V,AC-14: 5 A AC 48 V,AC-15: 3 A AC 220/240 V,AC-15: 4 A AC 110 V,AC-15: 5 A AC 24 V,AC-15: 5 A AC 48 V,DC-12: 0.4 A DC 250 V,DC-12: 0.6 A DC 110 V,DC-12: 2 A DC 48 V,DC-12: 8 A DC 24 V,DC-13: 2 A AC 24 V
Product compatibility Compact NS630b...1600,Compact NSX100...250,Compact NSX400...630

Environment

Standards IEC 947-5-1
IP degree of protection IP20 connectors: conforming to EN 60529,IP40 front: conforming to EN 60529,IP30 side: conforming to EN 60529
IK degree of protection Front: IK07 conforming to EN 50102

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.700 cm
Package 1 Width 16.000 cm
Package 1 Length 27.500 cm
Package 1 Weight 3.901 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
