Description for 29472 Schneider Electric

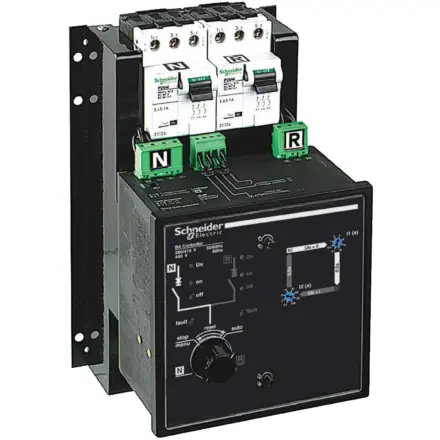

29472 Schneider Electric - remote control source changeover, Transferpact, ACP plate and UA controller, 220 VAC to 240 VAC 50/60 Hz

Extended Description for 29472 Schneider Electric

29472 Schneider Electric - It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices.,It is composed of an ACP plate and of an automatic UA controller.,This ACP provides in a single unit the protection of the controller, the control and the connection to the devices.,The UA controller is used to create a source-changeover transfer from one source to another depending on the presence of voltage UN on the âNormalâ source.,UA controller integrates also the start up of an engine generator set, the shedding and reconnection of non-priority circuits, the transfer to the âReplacementâ source if one of the phases on the âNormalâ source fails.,The control voltage is from 220VAC to 240VAC 50/60Hz.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£991.46 Exc. VAT
£1,189.75 Inc. VAT

Main

range of product NSX100...250,Compact NS100...630,MasterPact NW,MasterPact NT,NSX400...630,Compact NS630b...1600
product or component type Interface and control unit
accessory / separate part category Interlocking accessory
Range compatibility ComPact ComPact NS circuit breaker,ComPact ComPact NSX circuit breaker,Masterpact MasterPact NT circuit breaker,Masterpact MasterPact NW circuit breaker
Device short name ACP + UA
[Us] rated supply voltage 220...240 V AC at 50/60 Hz

Complementary

Operating mode Automatic operation,Forced operation on normal source,Stop (both normal and replacement source off),Forced operation on replacement source
Interlocked device MasterPact NT,NSX400...630,MasterPact NW,NSX100...250,Compact NS100...630,Compact NS630b...1600
selection modes Circuit breaker on R,Circuit breaker on N
Test function By pressing the test button on the front of the controller
Complementary function Voluntary transfer to replacement source (e.g. energy management commands),Forced normal source if replacement source not operational during peak-tariff,Selection of type of normal source (single-phase or three-phase),Setting of maximum startup time for the replacement source,Additional contact: transfer to replacement source only if contact is closed
Local signalling On,Off,Fault trip
Input type Contacts customer voluntary order to transfer to source R
Output type Contacts customer: indication of operation in automatic or stop mode
[Ith] conventional free air thermal current 8 A
[Ie] rated operational current AC-12: 4 A AC 440 V,AC-12: 5 A AC 380/415 V,AC-12: 8 A AC 110 V,AC-12: 8 A AC 220/240 V,AC-12: 8 A AC 24 V,AC-12: 8 A AC 48 V,AC-13: 6 A AC 110 V,AC-13: 6 A AC 220/240 V,AC-13: 7 A AC 24 V,AC-13: 7 A AC 48 V,AC-14: 4 A AC 110 V,AC-14: 4 A AC 220/240 V,AC-14: 5 A AC 24 V,AC-14: 5 A AC 48 V,AC-15: 3 A AC 220/240 V,AC-15: 4 A AC 110 V,AC-15: 5 A AC 24 V,AC-15: 5 A AC 48 V,DC-12: 0.4 A DC 250 V,DC-12: 0.6 A DC 110 V,DC-12: 2 A DC 48 V,DC-12: 8 A DC 24 V,DC-13: 2 A AC 24 V
Product compatibility Compact NS630b...1600,Compact NSX100...250,Compact NSX400...630

Environment

Standards IEC 947-5-1
IP degree of protection IP20 connectors: conforming to EN 60529,IP40 front: conforming to EN 60529,IP30 side: conforming to EN 60529
IK degree of protection Front: IK07 conforming to EN 50102

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.7 cm
Package 1 Width 16.0 cm
Package 1 Length 27.5 cm
Package 1 Weight 4.019 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
