Description for 31167 Schneider Electric

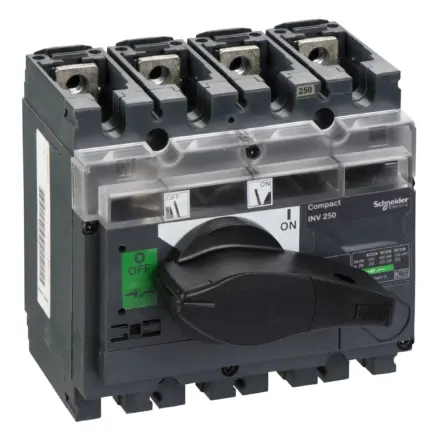

31167 Schneider Electric - switch disconnector, Compact INV250, visible break, 250 A, standard version with black rotary handle, 4 poles

Extended Description for 31167 Schneider Electric

31167 Schneider Electric - This Compact INV250 is a 4 poles non-automatic switch-disconnector with visible break and black rotary handle.,It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards.,The operational current is 250A at 415VAC in categories AC21A, AC22A and AC23A.,The rated voltage is 690VAC 50/60Hz or 250VDC.,Compact INV range allows the visible break of the main contacts through a transparent cover.,The black rotary handle is designed to offer easy operation and high performance in interruption of currents.,Compact INV250 is a class II insulation level front-face device as per IEC 60664 standard.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£161.16 Exc. VAT
£193.39 Inc. VAT

Main

Range ComPact
Product name Compact INV
product or component type Switch disconnector
Poles description 4P
Network type DC,AC
Network frequency 50/60 Hz
Handle colour Black
[Ie] rated operational current AC-21A: 250 A AC 50/60 Hz 220/240 V,AC-21A: 250 A AC 50/60 Hz 380/415 V,AC-21A: 250 A AC 50/60 Hz 440/480 V,AC-21A: 250 A AC 50/60 Hz 480 V NEMA,AC-21A: 250 A AC 50/60 Hz 500/525 V,AC-21A: 250 A AC 50/60 Hz 660/690 V,AC-22A: 250 A AC 50/60 Hz 220/240 V,AC-22A: 250 A AC 50/60 Hz 380/415 V,AC-22A: 250 A AC 50/60 Hz 440/480 V,AC-22A: 250 A AC 50/60 Hz 480 V NEMA,AC-22A: 250 A AC 50/60 Hz 500/525 V,AC-22A: 250 A AC 50/60 Hz 660/690 V,AC-23A: 250 A AC 50/60 Hz 220/240 V,AC-23A: 250 A AC 50/60 Hz 380/415 V,AC-23A: 250 A AC 50/60 Hz 440/480 V,AC-23A: 250 A AC 50/60 Hz 480 V NEMA,DC-21A: 250 A DC 125 V 2 poles in series,DC-22A: 250 A DC 125 V 2 poles in series,DC-21A: 250 A DC 250 V 4 poles in series,DC-22A: 250 A DC 250 V 4 poles in series
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 250 A at 60 °C
[Icm] rated short-circuit making capacity 30 kA switch-disconnector alone 690 V AC at 50/60 Hz,330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
[Ue] rated operational voltage 690 V AC 50/60 Hz,250 V DC
Suitability for isolation Yes
Contact position indicator Yes
Visible break Yes
Pollution degree 3

Complementary

Control type Rotary handle
mounting mode Fixed
mounting support Rail,Plate
Upside connection Front
Downside connection Front
Maximum power AC-23: 132 kW at 500/525 V AC 50/60 Hz,AC-23: 160 kW at 660/690 V AC 50/60 Hz,AC-23: 132 kW at 380/415 V AC 50/60 Hz,AC-23: 150 kW at 440 V AC 50/60 Hz,AC-23: 150 kW at 480 V AC 50/60 Hz (NEMA),AC-23: 75 kW at 220/240 V AC 50/60 Hz,AC-23: 75 kW at 230 V AC 50/60 Hz (NEMA)
Rated duty Uninterrupted
[Icw] rated short-time withstand current 1.8 kA during 30 s conforming to IEC 60947-3,2.2 kA during 20 s conforming to IEC 60947-3,4.9 kA during 3 s conforming to IEC 60947-3,8.5 kA during 1 s conforming to IEC 60947-3
Mechanical durability 15000 cycles
Electrical durability AC-22A: 1500 cycles 440 V AC 50/60 Hz,AC-22A: 1500 cycles 500 V AC 50/60 Hz,AC-22A: 1500 cycles 690 V AC 50/60 Hz,AC-23A: 1500 cycles 440 V AC 50/60 Hz,AC-23A: 1500 cycles 500 V AC 50/60 Hz,AC-23A: 1500 cycles 690 V AC 50/60 Hz,DC-22A: 1500 cycles 250 V DC,DC-23A: 1500 cycles 250 V DC
Connection pitch 45 mm
Height 136 mm
Width 140 mm
Depth 96 mm
net weight 2.2 kg

Environment

Standards IEC 60947-1,IEC 60947-3
Product certifications CCC,KEMA-KEUR
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 17.0 cm
Package 1 Width 13.5 cm
Package 1 Length 16.0 cm
Package 1 Weight 2.41 kg
Unit Type of Package 2 S04
Number of Units in Package 2 9
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 22.528 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
