Schneider Electric

47159

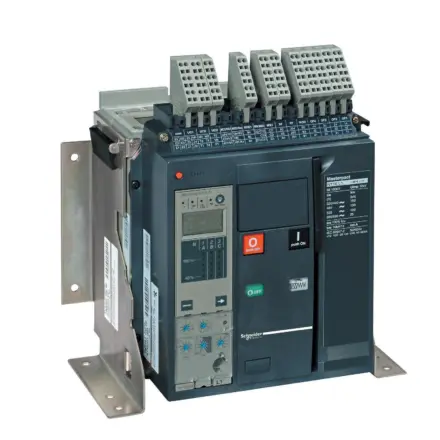

47159 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 47159 Schneider Electric

47159 Schneider Electric - switch-disconnector Masterpact NT06HA - 630 A - 690 V - 3 poles - fixed

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,431.27 Exc. VAT
£1,717.52 Inc. VAT

Main

Range MasterPacT
Product name MasterPact NT
product or component type Switch disconnector
Device short name MasterPact NT06
Switch-disconnector name MasterPact NT06HA
device application Protection
Poles description 3P
Network type AC
Network frequency 50/60 Hz
[Ie] rated operational current 630 A AC 50/60 Hz 690 V
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 75 kA 220...690 V AC at 50/60 Hz
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Breaking capacity code HA
Suitability for isolation Yes conforming to IEC 60947-3
Contact position indicator Yes
Visible break No
Pollution degree 3 conforming to IEC 60664-1

Complementary

Control type Push-button
mounting mode Fixed
Upside connection Front
Downside connection Front
Operating rate 10 cyc/h maximum
[Icw] rated short-time withstand current 36 kA during 0.5 s conforming to IEC 60947-3,36 kA during 1 s conforming to IEC 60947-3,20 kA during 3 s conforming to IEC 60947-3
Mechanical durability 12500 cycles without maintenance conforming to IEC 60947-3
Electrical durability AC-23A: 3000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3,AC-23A: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3,AC-3: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3
Connection pitch 70 mm
Height 301 mm
Width 276 mm
Depth 196 mm
net weight 14 kg

Environment

Standards IEC 60947-3
Product certifications ASEFA,LCIE
Ambient air temperature for operation -5…70 °C
Ambient air temperature for storage -40…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 36.0 cm
Package 1 Width 23.0 cm
Package 1 Length 39.0 cm
Package 1 Weight 12.712 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
