Description for 48120 Schneider Electric

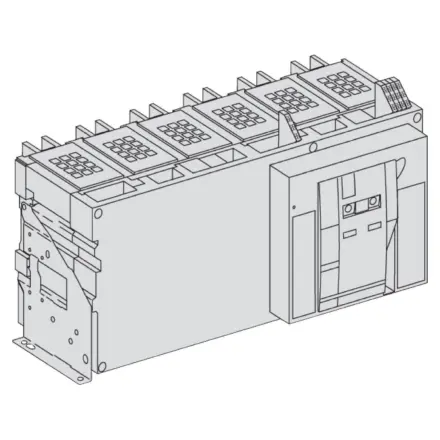

48120 Schneider Electric - switch-disconnector Masterpact NW63HA - 6300 A - 690 V - 3 poles - fixed

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£22,877.52 Exc. VAT
£27,453.02 Inc. VAT

Main

Range MasterPacT
Product name MasterPact NW
product or component type Switch disconnector
Device short name MasterPact NW63
Switch-disconnector name MasterPact NW63HA
device application Protection
Poles description 3P
Network type AC
Network frequency 50/60 Hz
[Ie] rated operational current 6300 A AC 50/60 Hz 690 V
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 187 kA 220...690 V AC at 50/60 Hz
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Breaking capacity code HA
Suitability for isolation Yes conforming to IEC 60947-3
Contact position indicator Yes
Visible break No
Pollution degree 4 conforming to IEC 60664-1

Complementary

Control type Push-button
mounting mode Fixed
Operating rate 10 cyc/h maximum
[Icw] rated short-time withstand current 85 kA during 1 s conforming to IEC 60947-3,85 kA during 3 s conforming to IEC 60947-3
Mechanical durability 10000 cycles with maintenance conforming to IEC 60947-3,5000 cycles without maintenance conforming to IEC 60947-3
Electrical durability AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3,AC-23A: 1500 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3,AC-23A: 1500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3
Connection pitch 230 mm
Height 352 mm
Width 767 mm
Depth 297 mm
net weight 120 kg

Environment

Standards IEC 60947-3
Product certifications ASEFA,ASTA
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -35…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 57.0 cm
Package 1 Width 64.0 cm
Package 1 Length 120.0 cm
Package 1 Weight 118.43 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
