Description for 56271 Schneider Electric

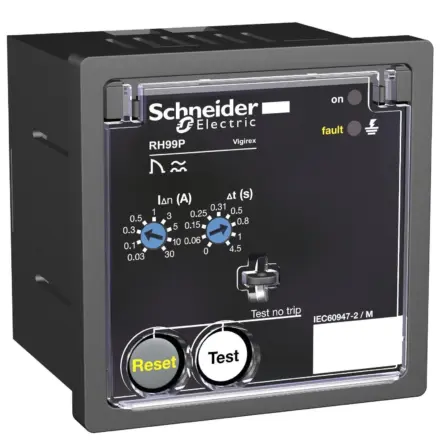

56271 Schneider Electric - residual current protection relay, Vigirex RH99P, 30 mA to 30 A, 48 VAC 50/60 Hz, front panel mounting

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£369.06 Exc. VAT
£442.88 Inc. VAT

Main

Range Vigirex
Device short name RH99P
product or component type Residual current protection relay
Relay application Protection relay
mounting support Front panel
Earth-leakage protection class Type A
Type of setting Selector
Residual earth-leakage sensitity adjustment type Adjustable 9 settings
Earth-leakage sensitivity 0.03…30 A
Earth-leakage time delay Instantaneous for 0.03 A,Adjustable 9 settings 0…4.5 s for 0.03…30 A
Current sensors compatibility Vigirex TOA earth leakage current sensor,Vigirex A earth leakage current sensor,Vigirex L earth leakage current sensor
[Ithe] conventional enclosed thermal current 8 A
Minimum load 10 mA at 12 V
[Us] rated supply voltage 48 V AC 50/60 Hz 55...110 %
Power consumption in VA 4 VA
Monitored distribution system 1000 V - AC at 50/60 Hz (maximum) ,1000 V - AC at 400 Hz (maximum)
Earthing system TT,IT,TN-S
[Uimp] rated impulse withstand voltage 8 kV
Reset Manual reset

Complementary

Test function Remote test,Local
Monitoring Electronics (continuous) ,Power supply (continuous) ,Relay/sensor link (continuous)
Type of measurement Earth fault current internal measurement, range: 80...100 %
Tamperproof of settings Protected by sealable cover
Connections - terminals Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Fault: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Fault: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Fault: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Relay test and fault reset: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Sensor: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Sensor: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Sensor: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Voltage presence: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Voltage presence: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Voltage presence: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12
Wire stripping length Auxiliary power supply: 7 mm,Fault: 7 mm,Relay test and fault reset: 7 mm,Sensor: 7 mm,Voltage presence: 7 mm
Tightening torque Auxiliary power supply: 0.6 N.m,Fault: 0.6 N.m,Relay test and fault reset: 0.6 N.m,Sensor: 0.6 N.m,Voltage presence: 0.6 N.m
Standards EN/IEC 60947-2 Annex M,EN/IEC 60755,UL 1053,CAN/CSA C22.2 No. 144
Width 72 mm
Height 72 mm
Depth 78 mm
cut-out dimensions 68 x 68 mm
net weight 0.3 kg
IP degree of protection IP40 on front face: conforming to EN/IEC 60529,IP30 on side parts: conforming to EN/IEC 60529,IP20 on connection terminals: conforming to EN/IEC 60529
IK degree of protection IK07 conforming to EN 50102
Mechanical robustness Fire resistance conforming to IEC 60695-2-1,IK protection 2 joules: IK07 conforming to EN 50102,Vibrations 13.2...100 Hz: 0.7 g,Vibrations 2...13.2 Hz: +/- 1 mm

Environment

Overvoltage category IV
Electrical shock protection class Class II
Electromagnetic compatibility Conducted and radiated emissions: , B, conforming to CISPR 11,Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6,Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2,High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5,Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4,Radiated susceptibility: , 3, conforming to IEC 61000-4-3
Relative humidity 95 % at 55 °C
Pollution degree 3 conforming to IEC 60664-1
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -55…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1

Contractual warranty

Warranty 18 months
