Schneider Electric

56510

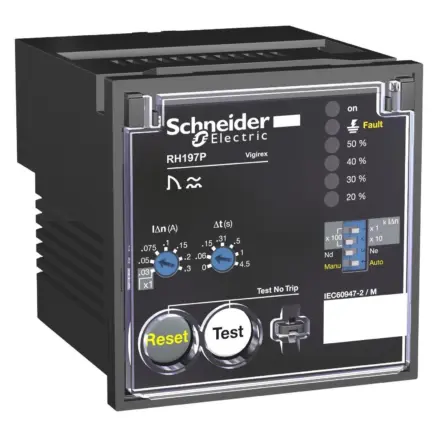

56510 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 56510 Schneider Electric

56510 Schneider Electric - Residual current protection relay, VigiPacT RH197P, 30mA to 30A, 48VAC 50/60Hz, 24/130VDC, alarm 100%, front panel

Extended Description for 56510 Schneider Electric

56510 Schneider Electric - VigiPacT RH197P is a front panel mounting residual current protection relay.,It protects against people direct or indirect contact, property fire hazards and motors.,It measures the earth leakage current in an electrical installation via its associated toroid.,It trips the associated circuit breaker when the set residual operation current is overrun.,The operational supply voltage is 48VAC 50/60Hz, or 24/130VDC.,It is a type A earth-leakage protection class.,The current sensitivity is selectable with 19 thresholds from 30 mA to 30 A.,The time delay is selectable with 7 settings from instantaneous to 4.5s.,The alarm is set by Dip switch at 100% of IDn.,A switch make the selection between local manual reset or automatic reset after a fault clearance.,The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz.,It is installed on a front panel switchboard and the protection degree is IP40.,It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.

Free Delivery to UK Mainland on orders over £25

Main

Range VigiPacT
Device short name RH197P
product or component type Residual current protection relay
Relay application Protection relay
mounting support Front panel
Earth-leakage protection class Type A
Type of setting Selector
Residual earth-leakage sensitity adjustment type Adjustable 19 settings
Earth-leakage sensitivity 0.03…30 A
Earth-leakage time delay Instantaneous for 0.03 A,Adjustable 7 settings 0…4.5 s for 0.03…30 A
Alarm threshold 100 %
Current sensors compatibility VigiPacT TOA earth leakage current sensor,VigiPacT A earth leakage current sensor,VigiPacT L earth leakage current sensor
[Ithe] conventional enclosed thermal current 8 A
Minimum load 10 mA at 12 V
[Us] rated supply voltage 48 V AC 50/60 Hz 70...110 %,24...130 V DC 70...110 %
Power consumption in VA 4 VA
Monitored distribution system 1000 V - AC at 50/60 Hz (maximum) ,1000 V - AC at 400 Hz (maximum)
Earthing system TT,TN-S,IT
[Uimp] rated impulse withstand voltage 8 kV
Reset Manual reset,Automatic reset

Complementary

Test function Local,Remote test
Monitoring Electronics (watchdog) ,Power supply (continuous) ,Relay/sensor link (continuous)
Signal contacts composition 1 NO
Type of measurement Earth fault current internal measurement, range: 80...100 %
Refresh time 0.5 s
Tamperproof of settings Protected by sealable cover
Connections - terminals Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Fault: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Fault: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Fault: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Relay test and fault reset: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Sensor: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Sensor: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Sensor: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12,Voltage presence: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12,Voltage presence: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12,Voltage presence: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12
Wire stripping length Auxiliary power supply: 7 mm,Fault: 7 mm,Relay test and fault reset: 7 mm,Sensor: 7 mm,Voltage presence: 7 mm
Tightening torque Auxiliary power supply: 0.6 N.m,Fault: 0.6 N.m,Relay test and fault reset: 0.6 N.m,Sensor: 0.6 N.m,Voltage presence: 0.6 N.m
Standards EN/IEC 60947-2 Annex M,EN/IEC 60755,UL 1053,CAN/CSA C22.2 No. 144
Width 72 mm
Height 72 mm
Depth 92 mm
cut-out dimensions 68 x 68 mm
net weight 0.3 kg
IP degree of protection IP40 on front face: conforming to EN/IEC 60529,IP30 on side parts: conforming to EN/IEC 60529,IP20 on connection terminals: conforming to EN/IEC 60529
IK degree of protection IK07 conforming to EN 50102
Mechanical robustness Fire resistance conforming to IEC 60695-2-1,IK protection 2 joules: IK07 conforming to EN 50102,Vibrations 13.2...100 Hz: 0.7 g,Vibrations 2...13.2 Hz: +/- 1 mm

Environment

Overvoltage category IV
Electrical shock protection class Class II
Electromagnetic compatibility Conducted and radiated emissions: , B, conforming to CISPR 11,Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6,Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2,High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5,Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4,Radiated susceptibility: , 3, conforming to IEC 61000-4-3
Relative humidity 95 % at 55 °C
Pollution degree 3 conforming to IEC 60664-1
Ambient air temperature for operation -25…55 °C
Ambient air temperature for storage -40…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 8.5 cm
Package 1 Length 10 cm
Package 1 Weight 248 g

Contractual warranty

Warranty 18 months
