Description for 59641 Schneider Electric

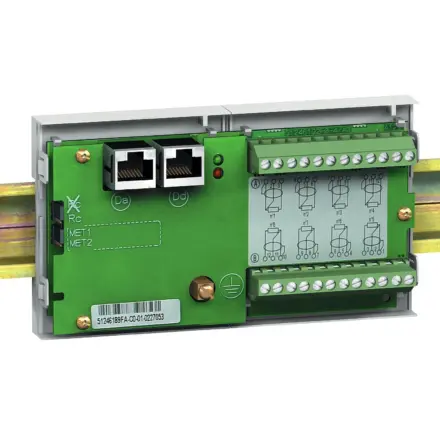

59641 Schneider Electric - 8 temperature sensor module MET148-2 for Sepam series 20, 40, 60, 80

Extended Description for 59641 Schneider Electric

59641 Schneider Electric - External 8 temperature sensors module MET148-2 for Schneider Electric's protection relays.,This module can be used to ensure direct temperature measurements with Resistance Temperature Detectors (RTDs).,It can be connected to the protection relay any time: during installation, commissioning or even during maintenance.,This module provides 8 Resistance Temperature Detector (RTD) inputs.,This external module can work with Pt100, Ni100 and Ni120 types of Resistance Temperature Detectors.,Connection is made thru screw-type terminals.,This module does not require auxiliary power supply. It is powered by Easergy P5.,The product dimensions are 88 mm in height (3.46 in), 144 mm in width (5.70 in) and 30 mm in depth 1.18 in) for a net weight of 200 g (0.440 lbs).,Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification.,This product can be installed on symmetrical DIN rail.,Connection cords (59660, 59661, 59662).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,028.65 Exc. VAT
£1,234.37 Inc. VAT

Main

Module type Temperature sensor
range of product Sepam series 80,Sepam series 60,Sepam series 80 NPP,Sepam series 40,Sepam series 20
Device short name MET148-2

Complementary

Type of measurement Temperature
Number of inputs 8
Temperature probe type Ni 100/Ni 120, <4 mA isolation from earth: none,Pt 100, <4 mA isolation from earth: none
mounting mode Fixed
mounting support Symmetrical DIN rail
Height 88 mm
Width 144 mm
Depth 30 mm
net weight 0.2 kg
Mechanical robustness Earthquakes in operation (level: 2) : 1 Gn (vertical axes) conforming to IEC 60255-21-3,Earthquakes in operation (level: 2) : 2 Gn (horizontal axes) conforming to IEC 60255-21-3,Jolts de-energized (level: 2) : 20 Gn/16 ms conforming to IEC 60255-21-2,Shocks de-energized (level: 2) : 27 Gn/11 ms conforming to IEC 60255-21-2,Shocks in operation (level: 2) : 10 Gn/11 ms conforming to IEC 60255-21-2,Vibrations de-energized (level: 2) : 2 Gn, 10 Hz...150 Hz conforming to IEC 60255-21-1,Vibrations in operation (level: 2) : 1 Gn, 10 Hz...150 Hz conforming to IEC 60255-21-1,Vibrations in operation (level: Fc) : 2 Hz...13.2 Hz, a = +/- 1 mm conforming to IEC 60068-2-6
Auxiliary connection terminal Earthing terminal: screw-type connectorscable <1000 m,Earthing terminal: screw-type connectorstinned copper braid 6…100 mm² <1000 m,RTDs: screw-type connectors1 cable(s) wire 0.2…2.5 mm²,RTDs: screw-type connectors2 cable(s) wire 0.2…1 mm²
Maximum distance between sensor and module 1 km
Tightening torque Earthing terminal: 2.2 N.m

Environment

Electromagnetic compatibility 1 MHz damped oscillating wave: (immunity tests-conducted disturbances), 2.5 kV CM, 1 kV DM, conforming to IEC 60255-22-1,1 MHz damped oscillating wave: (immunity tests-conducted disturbances), 2.5 kV CM, 2.5 kV DM, conforming to ANSI C37.90.1,100 kHz damped oscillating wave: (immunity tests-conducted disturbances), 2.5 kV CM, 1 kV DM, conforming to IEC 61000-4-12,Conducted disturbance emission: (emission tests), conforming to IEC 60255-25,Conducted disturbance emission: (emission tests), A, conforming to EN 55022,Disturbing field emission: (emission tests), conforming to IEC 60255-25,Disturbing field emission: (emission tests), A, conforming to EN 55022,Electrostatic discharge: (immunity tests-radiated disturbances), 8 kV air, 4 kV contact, conforming to ANSI C37.90.3,Electrostatic discharge: (immunity tests-radiated disturbances), 8 kV air, 6 kV contact, conforming to IEC 60255-22-2,Fast transient bursts: (immunity tests-conducted disturbances), 4kV, 2.5 kHz, conforming to ANSI C37.90.1,Fast transient bursts: (immunity tests-conducted disturbances), A and B, 4kV, 2.5 kHz/2 kV, 5 kHz, conforming to IEC 60255-22-4,Fast transient bursts: (immunity tests-conducted disturbances), IV, 4kV, 2.5 kHz, conforming to IEC 61000-4-4,Immunity to conducted RF disturbances: (immunity tests-conducted disturbances), III, 10 V, conforming to IEC 60255-22-6,Immunity to magnetic fields at network frequency: (immunity tests-radiated disturbances), IV, 30 A/m (continuous)-300 A/m (1-3 s), conforming to IEC 61000-4-8,Immunity to radiated fields: (immunity tests-radiated disturbances), 10 V/m, 80 MHz...1 GHz, conforming to IEC 60255-22-3,Immunity to radiated fields: (immunity tests-radiated disturbances), 35 V/m, 25 MHz...1 GHz, conforming to ANSI C37.90.2,Immunity to radiated fields: (immunity tests-radiated disturbances), III, 10 V/m, 80 MHz...2 GHz, conforming to IEC 61000-4-3,Surges: (immunity tests-conducted disturbances), III, 2 kV CM, 1 kV DM, conforming to IEC 61000-4-5,Voltage interruptions: (immunity tests-conducted disturbances), 100 % during 100 ms, conforming to IEC 60255-11
Climatic withstand Influence of corrosion/gaz test 2 (in operation) : 21 days, 75 % RH, 25 °C, 0.5 ppm H2S, 1 ppm S02 conforming to IEC 60068-2-60,Influence of corrosion/gaz test 4 (in operation) : 21 days, 75 % RH, 25 °C, 0.01 ppm H2S, 0.2 ppm S02, 0.2 ppm NO2, 0.01 ppm CI2 conforming to IEC 60068-2-60,Continuous exposure to damp heat (in operation) : Cab: 10 days, 93 % RH, 40 °C conforming to IEC 60068-2-78,Continuous exposure to damp heat (in storage) : Cab: 56 days, 93 % RH, 40 °C conforming to IEC 60068-2-78,Continuous exposure to damp heat (in storage) : Db: 6 days, 95 % RH, 55 °C conforming to IEC 60068-2-30,Exposure to cold (in operation) : Ad: - 25 °C conforming to IEC 60068-2-1,Exposure to cold (in storage) : Ab: - 25 °C conforming to IEC 60068-2-1,Exposure to dry heat (in operation) : Bd: 70 °C conforming to IEC 60068-2-2,Exposure to dry heat (in storage) : Bb: 70 °C conforming to IEC 60068-2-2,Salt mist (in operation) : Kb/2: 6 days conforming to IEC 60068-2-52,Temperature variation with specified variation rate (in storage) : Nb: - 25 °C to 70 °C, 5 °C/min conforming to IEC 60068-2-14
Ambient air temperature for operation -25…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.1 cm
Package 1 Width 12.3 cm
Package 1 Length 18.3 cm
Package 1 Weight 240.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 8
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.2 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

Environmental disclosure
