Schneider Electric

60992

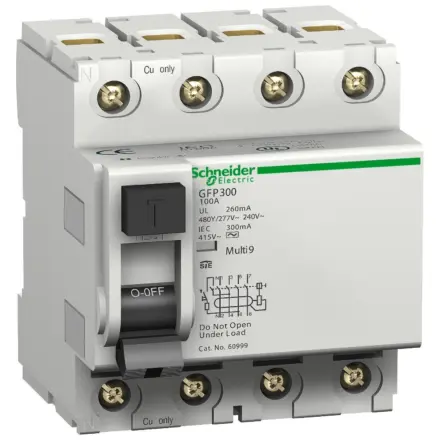

60992 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 60992 Schneider Electric

60992 Schneider Electric - ground fault protector GFP - 4 poles - 40A - 240..480V - 30mA SIE

Free Delivery to UK Mainland on orders over £25

Main

Range Multi9
Product name Multi9 GFP
product or component type Residual current circuit breaker (RCCB)
Device short name GFP
Poles description 4P
Neutral position Left
[In] rated current 40 A
Network type AC
Earth-leakage sensitivity 30 mA
Earth-leakage protection time delay Instantaneous
Earth-leakage protection class Type AC-SIE
Rated conditional short-circuit current 10 kA
Utilisation category AC-23A

Complementary

Network frequency 50/60 Hz
[Ue] rated operational voltage 240 V AC 60 Hz,480Y/277 V AC 60 Hz,230/400 V AC 50 Hz,240/415 V AC 50 Hz
[Uimp] rated impulse withstand voltage 6 kV
Control type Toggle
Local signalling Fault indication
Connection pitch 18 mm between phases
9 mm pitches 8
Height 81 mm
Width 72 mm
Depth 75 mm
net weight 450 g
Colour Grey
Mechanical durability 20000 cycles
Provision for padlocking Padlockable
Locking options description Padlocking in OFF position
Connections - terminals Tunnel type terminals2.5…35 mm² flexible,Tunnel type terminals2.5…35 mm² rigid
Tightening torque 3.5 N.m

Environment

Standards UL 1053,IEC 61008
IP degree of protection IP20 conforming to IEC 60529,IP40 conforming to IEC 60529,IPxx B conforming to IEC 60529
Tropicalisation 2
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 7.5 cm
Package 1 Length 9 cm
Package 1 Weight 383 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

CAD
