Schneider Electric

9001KM38LG

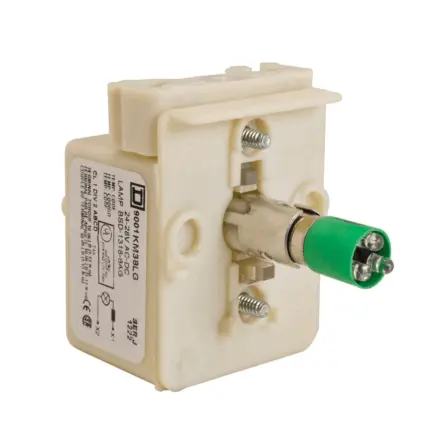

9001KM38LG Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001KM38LG Schneider Electric

9001KM38LG Schneider Electric - 30mm Push Button, Types K, SK or KX, light module, green LED lamp, 120 VAC/VDC

Extended Description for 9001KM38LG Schneider Electric

9001KM38LG Schneider Electric - Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries.,These product lines have a large variety of push buttons, selector switches and pilot lights.,Illuminated devices in this product line use a replaceable light module to do the illuminating.,These light modules provide clear visual feedback on the status of the machine.,The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC.,This light module with internal resistance is designed for 120 VAC or VDC circuits.,Light modules have either an incandescent or an LED lamp.,This light module has a green LED lamp.,This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap.,These light modules are UL Listed and CSA certified.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£37.15 Exc. VAT
£44.58 Inc. VAT

Main

range of product Harmony 9001K,Harmony 9001SK
product or component type Light module,Light block
Device short name 9001K
Bulb base BA 9s
Light block supply Direct via integral resistance 1.4 VA

Complementary

Light source LED (bulb included)
Light block colour Green
[Us] rated supply voltage 120 V AC at 50...60 Hz,120 V DC

Environment

Protective treatment TC
Ambient air temperature for storage -40…70 °C,-40…158 °F
Ambient air temperature for operation -25…70 °C,-13…158 °F
IP degree of protection IP20 conforming to IEC 60529
Standards UL 508,CSA C22.2 No 14,EN/IEC 60947-5-4,EN/IEC 60947-5-1,EN/IEC 60947-1,JIS C 4520,JIS C 852
Product certifications UL listed,CSA,NEMA
Electrical shock protection class Class II conforming to IEC 61140
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.588 cm
Package 1 Width 9.144 cm
Package 1 Length 4.572 cm
Package 1 Weight 63.503 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet
