Schneider Electric

9001KR24BM

9001KR24BM Schneider Electric

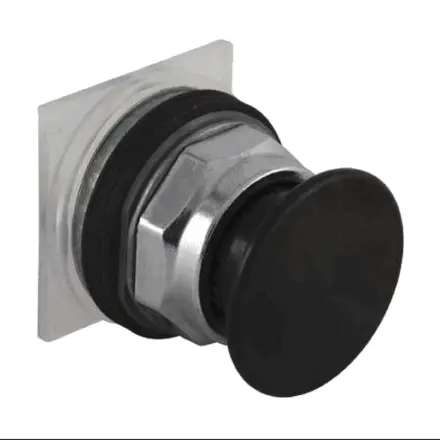

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001KR24BM Schneider Electric

9001KR24BM Schneider Electric - Momentary Push Button

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£80.81 Exc. VAT
£96.97 Inc. VAT

Main

range of product Harmony 9001K
product or component type Head for push-button
Product compatibility Contact block 9001KA..
Device short name 9001K
Type of operator spring return
Operator profile Black mushroom Ø 40 mm, unmarked

Complementary

Bezel material Metal
Mounting diameter 30 mm
CAD overall width 45.5 mm
CAD overall height 45 mm
CAD overall depth 70 mm
net weight 0.141 kg
Operating position Any position
Shape of signaling unit head Round
Head material Metal
Operator additional information Screw-on metal with set screw
Contacts type and composition Without contact block
Mechanical durability 5000000 cycles
Device presentation Basic element
cap/operator or lens colour Black
Operator profile Mushroom Ø 40 mm
Type of operator Spring return
Size 30 mm

Environment

Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Overvoltage category Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1,NEMA 12,NEMA 13,NEMA 2,NEMA 3,NEMA 3R,NEMA 4,NEMA 6
Standards IEC 60947-5-1,IEC 60947-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,CSA C22.2 No 14
Product certifications NEMA,UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 29.032 cm
Package 1 Width 11.43 cm
Package 1 Length 73.742 cm
Package 1 Weight 136.078 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
