Schneider Electric

9001KR9P35LRR

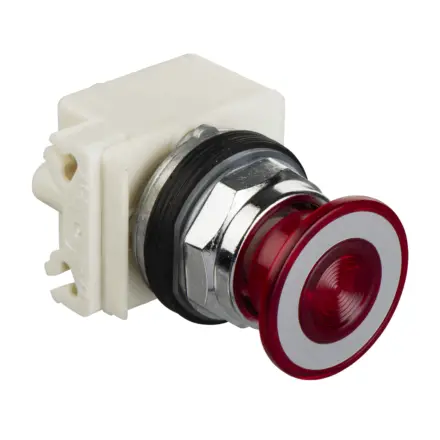

9001KR9P35LRR Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001KR9P35LRR Schneider Electric

9001KR9P35LRR Schneider Electric - PUSHBOTTON PILOT LIGHT 30MM

Extended Description for 9001KR9P35LRR Schneider Electric

9001KR9P35LRR Schneider Electric - This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal.,It has a chromium-plated metal bezel.,It is supplied with a red mushroom diameter 41mm, unmarked,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.,It is easily installed into a standard 30mm diameter panel cut-outs.,It features 2 positions stay put operator and it is supplied with 24V AC/DC and with super bright LED, included.,It weighs 186g.,The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing.,It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£59.34 Exc. VAT
£71.21 Inc. VAT

Main

range of product Harmony 9001K
Device short name 9001K
product or component type Head for illuminated push-button
Type of operator stay put
Operator profile Red mushroom Ø 41 mm, unmarked
Light block supply Direct

Complementary

Bezel material Metal
Mounting diameter 30 mm
net weight 0.186 kg
Operating position Any position
Shape of signaling unit head Round
Operator position information 2 positions
Contacts type and composition Without contact block
Mechanical durability 5000000 cycles
Light source LED
Light source incandescent
Bulb base BA 9s
[Us] rated supply voltage 24 V AC/DC
[Us] rated supply voltage 24 V AC/DC
compatibility code 9001K
cap/operator or lens colour Red
[Us] rated supply voltage 24...28 V
Light source colour Red
Operator profile Mushroom Ø 41 mm
Type of operator Push-pull
Operator additional information Screw-on plastic
Size 30 mm

Environment

Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Electrical shock protection class Class II conforming to IEC 60536
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1,NEMA 12,NEMA 13,NEMA 2,NEMA 3,NEMA 3R,NEMA 4
Standards EN/IEC 60947-5-4,UL 508,CSA C22.2 No 14,EN/IEC 60947-5-1,JIS C 852,EN/IEC 60947-1,JIS C 4520
Product certifications NEMA,UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.572 cm
Package 1 Width 5.334 cm
Package 1 Length 9.144 cm
Package 1 Weight 118.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
