Schneider Electric

9001KS11K1H13R

9001KS11K1H13R Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001KS11K1H13R Schneider Electric

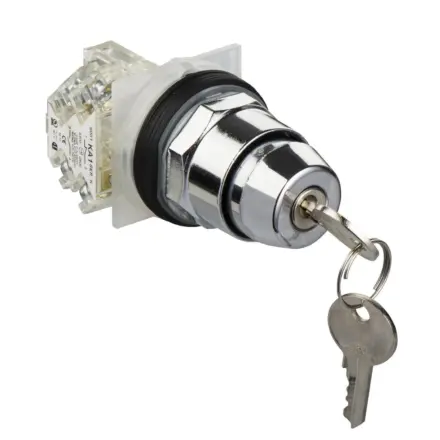

9001KS11K1H13R Schneider Electric - PUSHBUTTON SELECTOR SWITCH 30MM K

Free Delivery to UK Mainland on orders over £25

Main

range of product Harmony 9001K
product or component type Selector switch
Device short name K
Type of operator maintained
Operator profile Black key operated knob

Complementary

Bezel material Metal
Mounting diameter 30 mm
Operator position information 2 positions
Key number 455
Key withdrawal position Left
Contacts type and composition 1 C/O
Connections - terminals Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
Device presentation Complete product
Operator profile Key switch
Type of operator Stay put
Size 30 mm
Cam profile 5

Environment

NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR24590 class 3211 03,CE,UL listed file E42259 CCN NKCR

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.826 cm
Package 1 Width 5.842 cm
Package 1 Length 11.43 cm
Package 1 Weight 226.796 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue
