Schneider Electric

9001KT35R31

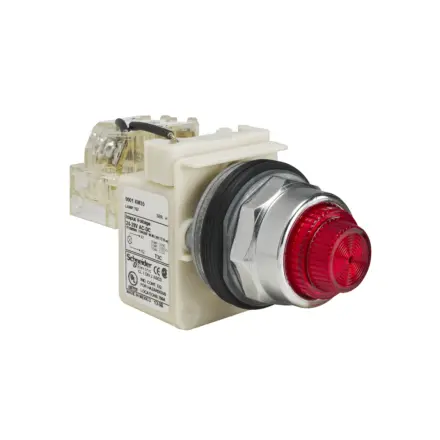

9001KT35R31 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001KT35R31 Schneider Electric

9001KT35R31 Schneider Electric - Push to test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, red, 30mm, 24...28V

Extended Description for 9001KT35R31 Schneider Electric

9001KT35R31 Schneider Electric - This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines,It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color,It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments,It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections,High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)

Free Delivery to UK Mainland on orders over £25

Main

range of product Harmony 9001K
product or component type Push-to-test pilot light
Device short name K

Complementary

Bezel material Metal
Mounting diameter 30 mm
Lens type Fresnel plastic
cap/operator or lens colour Red
Bulb base BA 9s
Light block supply Full voltage 24 V,Full voltage 28 V
Shape of screw head Round
Light source Incandescent bulb
Operating mode Push-to-test
Lens type Fresnel
[Us] rated supply voltage 24...28 V
Light block supply Full voltage
Contacts type and composition 1 C/O
Lens material Polycarbonate
Size 30 mm

Environment

Product certifications CSA LR25490 class 3211 03,CE,UL listed file E42259 CCN NKCR
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.903 cm
Package 1 Width 5.08 cm
Package 1 Length 32.774 cm
Package 1 Weight 181.437 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD
