Schneider Electric

9001KY4

9001KY4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001KY4 Schneider Electric

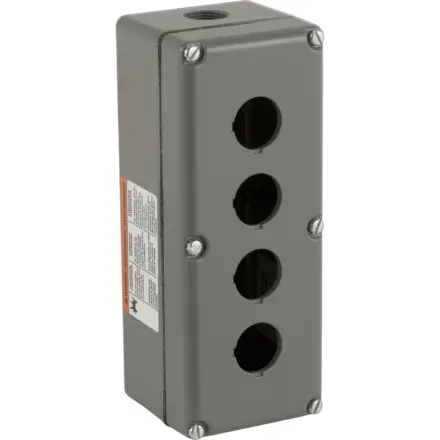

9001KY4 Schneider Electric - empty control station - 9001K - aluminium - 4 cut-outs à 30

Extended Description for 9001KY4 Schneider Electric

9001KY4 Schneider Electric - This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm.,It comprises an aluminium enclosure with 4 vertical opening diameter 30mm.,It is supplied with 1 entry tapped for 3/4'' cable gland.,It weighs 1.846kg.,The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing.,It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£78.95 Exc. VAT
£94.74 Inc. VAT

Main

range of product Harmony 9001SK,Harmony 9001K
product or component type Empty enclosure
Device short name 9001K
Number of cut-out 4 cut-outs
Cable entry 1 entry tapped for 3/4'' cable gland

Complementary

Product destination For Ø 30 mm control and signalling units
Material Aluminium
net weight 1.84 kg

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Overvoltage category II conforming to IEC 61140
NEMA degree of protection NEMA 1,NEMA 12,NEMA 13,NEMA 3,NEMA 4,NEMA 6

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.16 cm
Package 1 Width 10.16 cm
Package 1 Length 25.146 cm
Package 1 Weight 2.118 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 13.243 kg

Contractual warranty

Warranty 18 months
