Schneider Electric

9001SK1L1G

9001SK1L1G Schneider Electric

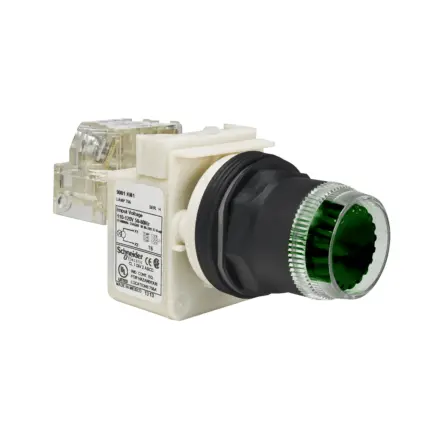

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001SK1L1G Schneider Electric

9001SK1L1G Schneider Electric - PUSHBUTTON OPERATOR 30MM SK +OPTIONS

Extended Description for 9001SK1L1G Schneider Electric

9001SK1L1G Schneider Electric - This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard.,It has a double insulated plastic bezel and is supplied with a 110V AC transformer.,This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines.,It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.,Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£52.63 Exc. VAT
£63.16 Inc. VAT

Main

range of product Harmony 9001SK
product or component type Head for illuminated push-button
Device short name 9001SK

Complementary

Bezel material Plastic
Mounting diameter 30 mm
Shape of signaling unit head Octagonal
Operator additional information Plastic guard
Bulb base BA 9s
Light block supply Via transformer 120 V AC 50/60 Hz
Contacts type and composition Without contact block
Product certifications CE,UL listed file E42259 CCN NKCR,CSA LR24590 class 3211 03
IP degree of protection IP64
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
cap/operator or lens colour Green
[Us] rated supply voltage 110...120 V
Light block supply Via integral transformer
Operator profile Flush
Type of operator Spring return
Supply frequency 50...60 Hz
Size 30 mm
Light source Incandescent bulb

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.601 cm
Package 1 Width 9.299 cm
Package 1 Length 4.6 cm
Package 1 Weight 185.973 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD
