Schneider Electric

9001SKR8BH25

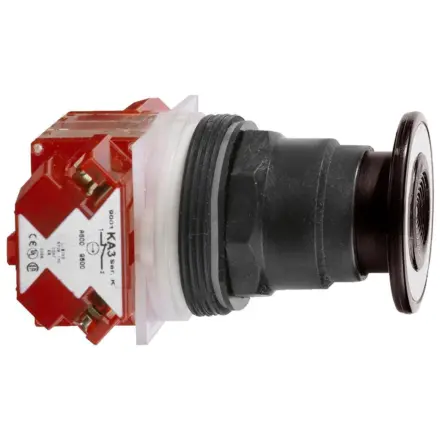

9001SKR8BH25 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001SKR8BH25 Schneider Electric

9001SKR8BH25 Schneider Electric - PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS

Extended Description for 9001SKR8BH25 Schneider Electric

9001SKR8BH25 Schneider Electric - This Harmony 9001SK, modular black push button has 3-postions, operates with spring return mechanism.,It has a double insulated plastic bezel, has a round shape and is supplied with contact block, 40mm mushroom head.,This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy.,It is easily combined with Harmony range of contact blocks to perform a large variety of control functions.,It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.,Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Free Delivery to UK Mainland on orders over £25

Main

range of product Harmony 9001SK
product or component type Mushroom head push-button
Device short name 9001SK
Type of operator pull : spring return, center : stay put, push : spring return
Operator profile Black mushroom Ø 41 mm, unmarked
Operator additional information Screw-on plastic mushroom

Complementary

Bezel material Plastic
Mounting diameter 30 mm
CAD overall width 46 mm
CAD overall height 45 mm
CAD overall depth 69 mm
net weight 0.159 kg
Operating position Any position
Shape of signaling unit head Round
Operator position information 3 positions
Contacts type and composition 1 NC for late-break,1 NC for slow-break
Positive opening With conforming to IEC 60947-5-2
Mechanical durability 5000000 cycles
Connections - terminals Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to EN/IEC 60947-1
Tightening torque 0.8 N.m conforming to EN/IEC 60947-1
Shape of screw head Cross slotted
Contacts material Silver alloy contacts
Short-circuit protection 10 A cartridge fuse conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to EN/IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA,0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
[Icm] rated short-circuit making capacity 12 kA at 600 V AC-15, 7200 VA,15 kA at 480 V AC-15, 7200 VA,30 kA at 240 V AC-15, 7200 VA,60 kA at 120 V AC-15, 7200 VA,0.1 kA at 600 V DC-13,0.27 kA at 250 V DC-13,0.55 kA at 125 V DC-13
Rated breaking capacity 3 kA at 240 V AC-15, 720 VA,6 kA at 120 V AC-15, 720 VA,1.2 kA at 600 V AC-15, 720 VA,1.5 kA at 480 V AC-15, 720 VA,0.1 kA at 600 V DC-13,0.27 kA at 250 V DC-13,0.55 kA at 125 V DC-13
compatibility code 9001SK
Device presentation Complete product

Environment

Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Overvoltage category Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1,NEMA 12,NEMA 13,NEMA 2,NEMA 3,NEMA 3R,NEMA 4,NEMA 4X
Standards EN/IEC 60947-5-1,EN/IEC 60947-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,CSA C22.2 No 14
Product certifications NEMA,UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.826 cm
Package 1 Width 5.842 cm
Package 1 Length 11.43 cm
Package 1 Weight 226.796 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue
