Schneider Electric

9001SKS53FB

9001SKS53FB Schneider Electric

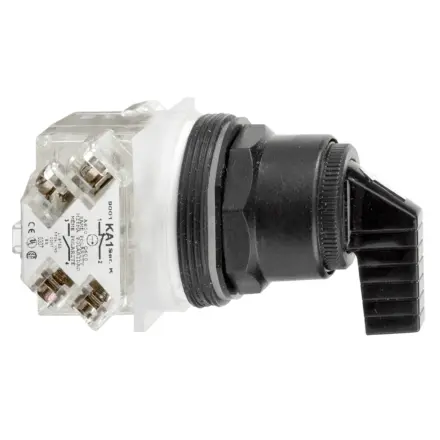

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 9001SKS53FB Schneider Electric

9001SKS53FB Schneider Electric - SELECTOR SWITCH OPERATOR 30MM SK

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£28.80 Exc. VAT
£34.55 Inc. VAT

Main

range of product Harmony 9001SK
product or component type Head for selector switch
Device short name 9001SK
Type of operator To centre spring return
Operator profile Black long handle

Complementary

Bezel material Plastic
Mounting diameter 30 mm
net weight 0.059 kg
Shape of signaling unit head Octagonal
Operator position information 3 positions
Contacts type and composition Without contact block
Mechanical durability 500000 cycles
Product compatibility 9001KA1, mounted side 1 or 2
Device presentation Basic element
cap/operator or lens colour Black
Operator profile Long handle
Type of operator Spring return
Size 30 mm
Return Both sides to centre
Cam profile 3

Environment

Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Electrical shock protection class Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1,NEMA 12,NEMA 13,NEMA 2,NEMA 3,NEMA 3R,NEMA 4,NEMA 4X,NEMA 6
Standards JIS C 852,EN/IEC 60947-5-1,CSA C22.2 No 14,EN/IEC 60947-1,UL 508,JIS C 4520,EN/IEC 60947-5-4
Product certifications UL 508,NEMA
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.08 cm
Package 1 Width 5.842 cm
Package 1 Length 7.112 cm
Package 1 Weight 58.967 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet
