Schneider Electric

A9E18332

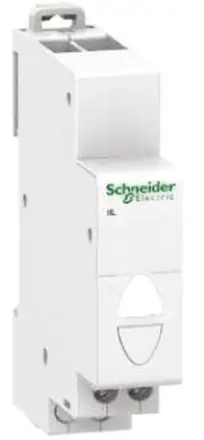

A9E18332 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for A9E18332 Schneider Electric

A9E18332 Schneider Electric - Acti9 iIL single indicator light - White - 12-48 Vac/dc

Extended Description for A9E18332 Schneider Electric

A9E18332 Schneider Electric - Schneider Electric, iIL White LED Indicator, 48V ac/dc

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£8.12 Exc. VAT
£9.74 Inc. VAT

Main

range of product Acti9
Product name Acti9 iIL
product or component type Modular pilot light
Device short name iIL
[Us] rated supply voltage 12...48 V AC at 50/60 Hz,12...48 V DC

Complementary

indicator light 1 LED white, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
mounting mode Fixed
mounting support Symmetrical DIN rail
Comb busbar and distribution block compatibility Upside: ProDis
9 mm pitches 2
Height 82 mm
Width 18 mm
Depth 69.5 mm
Colour White (RAL 9003)
Auxiliary connection terminal Tunnel type terminal 1 cable(s) rigid 0.5 mm²,Tunnel type terminal 2 cable(s) rigid 2.5 mm²,Tunnel type terminal 1 cable(s) flexible 0.5 mm²,Tunnel type terminal 2 cable(s) flexible 2.5 mm²,Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
Wire stripping length 9 mm
Tightening torque 1 N.m

Environment

Standards IEC 60947-5-1
IP degree of protection IP2,IPxx B
Pollution degree 3
Tropicalisation 2
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -40…80 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.7 cm
Package 1 Width 6.8 cm
Package 1 Length 9 cm
Package 1 Weight 40 g
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Height 9.8 cm
Package 2 Width 8 cm
Package 2 Length 23.3 cm
Package 2 Weight 538 g
Unit Type of Package 3 S03
Number of Units in Package 3 108
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.36 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
