A9L16618

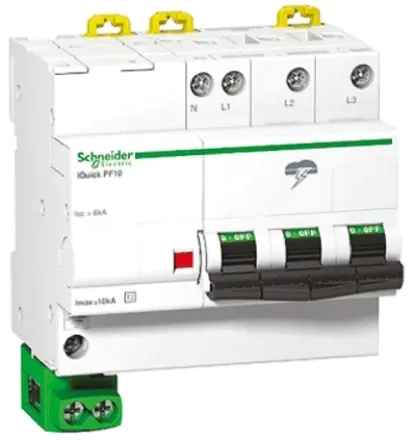

A9L16618 Schneider Electric - Acti9 - iQuick PF10 - Surge protector - 3P+N - 230/400V - 10kA - with earth cable

A9L16618 Schneider Electric - Type 2, the pre-wired iQuick PF surge protector protects 3P+N installations against indirect transient lightning overvoltages., Dimensions L88.4xH106.7xD74.1mm with a width of 10 steps of 9mm, its degree of protection is IP20 and IP40 in the modular box. Its operating temperature is -25°C to +60°C and its storage temperature is -40°C to +80°C.,This Acti9 iQuick PF is compatible with TT and TN earthing systems- S.,The iQuick PF surge protector has a maximum discharge current Imax of 20kA. Its nominal discharge current In is 20kA and its maximum continuous operating voltage Uc in differential mode (between phase and neutral) is 275Vac., With a maximum continuous voltage Uc in common mode of 275Vac between phase and earth, its nominal voltage Ue is 230/400Vac. The level of protection against overvoltage is 1.5kV type 2. Its operating frequency is 50/60Hz.,In DIN rail mounting, this product integrates its end-of-life disconnector circuit breaker. This iQuick PF surge protector is pre-wired. A terminal and a 16mm² cable are supplied fitted for connection to the cabinet earth bar.,The performance of this product meets most demanding international standards and approvals: EN 61643-11:2012 and IEC 61643- 11:2011.,Coordination with integrated circuit breaker up to a maximum short-circuit current of 6kA,Coordination with integrated circuit breaker up to a maximum short-circuit current of 6kA
