Schneider Electric

A9MEM3365

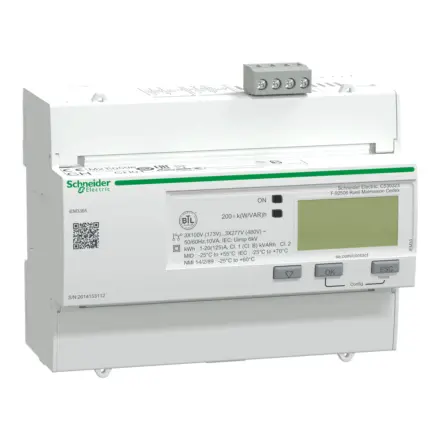

A9MEM3365 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for A9MEM3365 Schneider Electric

A9MEM3365 Schneider Electric - iEM3365 energy meter - 125 A - BACnet - 1 digital I - 1 digital O - multi-tariff - MID

Extended Description for A9MEM3365 Schneider Electric

A9MEM3365 Schneider Electric - The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display.,Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators.,This meter can be used in sub-billing applications and supports 4 tariff schedules.,The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12.,The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement.,Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC.,Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations.,Communication protocol is BACnet with screw terminal support.,There is one programmable digital input and one programmable digital output that can be used as a pulsed output.,Certifications include EAC, CE, UL and MID.,Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£276.50 Exc. VAT
£331.80 Inc. VAT

Main

Range Acti9
range of product Acti9 iEM3000
Device short name iEM3365
product or component type Energy meter

Complementary

Poles description 1P + N,3P + N,3P
Type of measurement Active and reactive energy,Active and reactive power,Current,Voltage
Metering type Active, reactive, apparent energy (signed, four quadrant)
device application Sub billing,Partial meter,Multi-tariff
Accuracy class Class 1 active energy conforming to IEC 62053-21,Class 1 active energy conforming to IEC 61557-12,Class B active energy conforming to EN 50470-3
input type Direct input
[In] rated current 125 A
Rated voltage 100…277 V,173…480 V
Network frequency 60 Hz,50 Hz
Technology type Electronic
Display type LCD display
Sampling rate 32 samples/cycle
Measurement current 0…125 A
Maximum value measured 99999999.9 kWh
tariff input Tariff (4)
Communication port protocol BACnet at 9.6, 19.2, 38.4, 57.6, 76.8 kbauds, insulation 4000 V
Communication port support Screw terminal block: RS485
Local signalling Green indicator light: power ON,Yellow flashing LED: accuracy checking, alarm: overload
Number of inputs 1 digital 0...5 V/11...40 V 24 V DC
Number of outputs 1 digital (static)
Output voltage 5...40 V DC@50 mA
mounting mode Clip-on
mounting support DIN rail
Connections - terminals Screw terminals 50 mm² cable(s)
Overvoltage category III
Standards BS EN 61557-12:2021,IEC 61557-12:2021,EN 61557-12:2021,BS EN 61326-1,IEC 61326-1,EN 61326-1,BS EN 62052-11:2020,IEC 62052-11:2020,EN 62052-11:2020,BS EN 62053-21,IEC 62053-21,EN 62053-21,BS EN 62052-23,IEC 62053-23:2020,EN 62052-23,BS EN 62052-31:2015,IEC 62052-31:2015,EN 62052-31:2015,BS EN 61010-1:2010,EN 61010-1:2010,IEC 61010-1:2010,UL 61010-1:2010,BS EN 61010-2-30,IEC 61010-2-30,EN 61010-2-30,UL 61010-2-30,BS EN 50470-3,EN 50470-3,BS EN 50470-1,EN 50470-1,ANSI C12.16
Product certifications CE conforming to IEC 61010-1 (safety),CE conforming to EN 61557-12 (power monitor),CE conforming to EN/IEC 61326-1 (EMC),UKCA conforming to BS EN 61010-1 (safety),UKCA conforming to BS EN 61557-12 (power monitor),UKCA conforming to BS EN 61326-1 (EMC),CULus conforming to UL 61010-1 (safety),CULus conforming to EN 61010-1 (safety),EAC conforming to EN 50470-3 (sub-meter),RCM conforming to EN 62052 (sub-meter),KZ conforming to EN 50470-3 (sub-meter),METAS conforming to EN 50470-1 (sub-meter),MID conforming to EN 50470-3 (sub-meter),MID conforming to EN 50470-1 (sub-meter),NMI conforming to NMI M 6-1

Environment

IP degree of protection IP40 front panel: conforming to IEC 60529,IP20 body: conforming to IEC 60529
Pollution degree 2
Relative humidity 5…95 % at 50 °C
Ambient air temperature for operation -25…55 °C - MID,-25…70 °C - IEC,-25…60 °C - IEC
Ambient air temperature for storage -40…85 °C
Operating altitude < 2000 m
colour White
9 mm pitches 14
Width 126 mm
Height 103.2 mm
Depth 69.3 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 11.0 cm
Package 1 Length 13.0 cm
Package 1 Weight 708.0 g

Contractual warranty

Warranty 18 months
