Schneider Electric

ABL2REM24015K

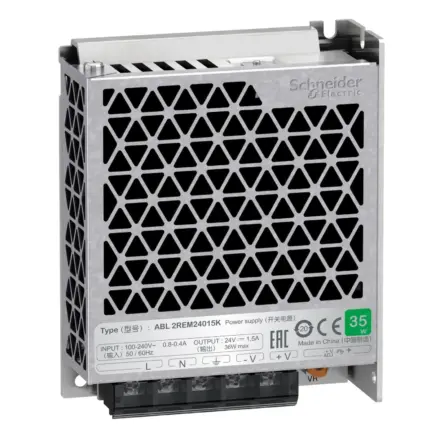

ABL2REM24015K Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ABL2REM24015K Schneider Electric

ABL2REM24015K Schneider Electric - single phase power supply, 100...240V input, 24V DC output, 36W, 1,5A

Extended Description for ABL2REM24015K Schneider Electric

ABL2REM24015K Schneider Electric - This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy).,It is a regulated switch mode 24V DC power supply, model 35W, with a 100V to 240V AC output voltage, and 36W nominal power.,Its output current is 1.5A.,It offers better performance with cost effective.,Its cooling is based on natural convection.,It has an automatic voltage switching. Its overload hiccup protection is 110-160%.,It measures 99mm wide x 82mm high x 30mm deep.,This power supply is fitted for repetitive machines.,ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS.,This power supply has fixing holes for panel mounting or the 4-corner bracket mounting.,Better performance with cost effective.,Smart design.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£10.33 Exc. VAT
£12.40 Inc. VAT

Main

range of product Easy Modicon ABL2
product or component type Power supply
power supply type Regulated switch mode
Rated power in W 36 W
Main Input Voltage 100...240 V AC single phase
Output voltage 24 V DC
Power supply output current 1.5 A
Operating position Any position
Vibration resistance 4 gn (f= 10…500 Hz) conforming to IEC 61131-2
Name of test Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A

Complementary

input voltage limits 85...264 V
Network frequency 47...63 Hz
Inrush current 45 A at 100...240 V AC
Cos phi 0.45
Efficiency 87 %
Power dissipation in W 5.4 W
Current consumption 0.4 A at 240 V
Input protection type Integrated fuse (not interchangeable)
Output voltage limits 20.4...27.6 V
Line and load regulation +/- 1 %
Holding time >= 12 ms at 115 V
Output protection type Against overload, protection technology: 1.1...1.5 x In,Against short-circuits, protection technology: 1.1...1.5 x In,Against overvoltage, protection technology: 28.8...33.6 V
Connections - terminals For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
marking CE
Electromagnetic compatibility Immunity to electromagnetic interference conforming to EN 55022 class B
mounting support DIN rail with accessory,Panel mounting with accessory
Operating altitude 5000 m
Output coupling Series
Overvoltage category II
Meantime between failure [MTBF] 600000 h at 25 °C
Status LED 1 LED (green) output voltage
Width 99 mm
Height 82 mm
Depth 30 mm
net weight 0.23 kg

Environment

Product certifications EAC,IC,RoHS,KC,RCM
IP degree of protection IP20 conforming to IEC 62368-1
Ambient air temperature for operation -30…70 °C (with power derating of 2.5 % per °C)
Ambient air temperature for storage -40…85 °C
Relative humidity 10…95 %
Overvoltage category Class I conforming to IEC 62368-1
Pollution degree 2
Dielectric strength 2000 V between input and ground

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.744 cm
Package 1 Width 8.79 cm
Package 1 Length 10.549 cm
Package 1 Weight 231.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 63
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 15.19 kg

Contractual warranty

Warranty 18 months
