Schneider Electric

AK5PA211N3

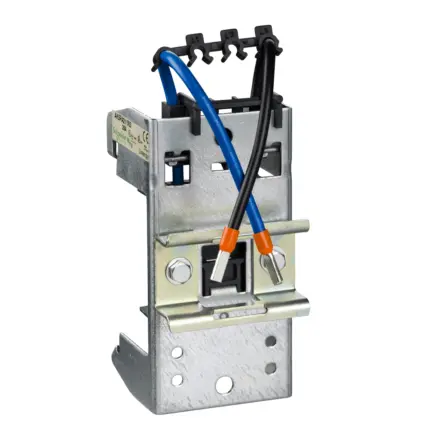

AK5PA211N3 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for AK5PA211N3 Schneider Electric

AK5PA211N3 Schneider Electric - PLATE BIP PH3 N H105MM

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£19.95 Exc. VAT
£23.94 Inc. VAT

Main

Range Linergy
Product name HK
product or component type Mounting plate
Poles description 1P + N
[Ith] conventional free air thermal current 25 A
I²t on activation 200000 A².s
Number of cables 2 cable(s) 4 mm² at 105 °C
Width 54 mm
Height 105 mm
Depth 61 mm

Complementary

[Ui] rated insulation voltage 690 V conforming to IEC 60439-1
9 mm pitches 6
net weight 0.135 kg

Environment

Standards IEC 60439
Product certifications LROS (Lloyds register of shipping),UL,CSA,DNV

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.3 cm
Package 1 Width 7.3 cm
Package 1 Length 12.0 cm
Package 1 Weight 208.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
