Schneider Electric

AK5PA542

AK5PA542 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for AK5PA542 Schneider Electric

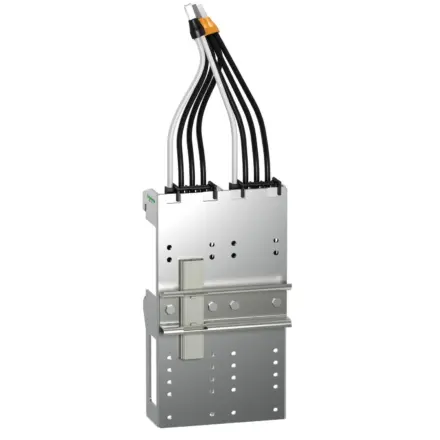

AK5PA542 Schneider Electric - PLATE 50A 4 POLES

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£52.50 Exc. VAT
£63.00 Inc. VAT

Main

Range Linergy
Product name HK
product or component type Mounting plate
Poles description 3P + N
[Ith] conventional free air thermal current 50 A
I²t on activation 200000 A².s
Number of cables 4 cable(s) 4 mm² at 105 °C,4 cable(s) 4 mm²
Width 106 mm
Height 190 mm
Depth 63 mm

Complementary

[Ui] rated insulation voltage 690 V conforming to IEC 60439-1
9 mm pitches 12
net weight 0.71 kg

Environment

Standards IEC 60439
Product certifications UL,CSA,LROS (Lloyds register of shipping),DNV

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 11.500 cm
Package 1 Length 33.700 cm
Package 1 Weight 805.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 9
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.665 kg
Unit Type of Package 3 P12
Number of Units in Package 3 72
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 73.320 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
