Schneider Electric

AP9544

AP9544 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for AP9544 Schneider Electric

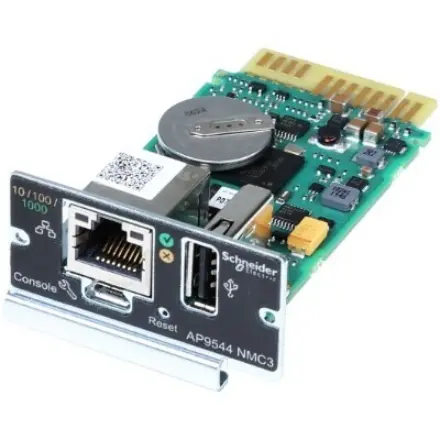

AP9544 Schneider Electric - Network Management Card, Network Management Cards, for Easy UPS On-Line, 1-Phase, remotely monitor and manage the UPS

Extended Description for AP9544 Schneider Electric

AP9544 Schneider Electric - The Network Management Card for Easy UPS On-Line enables secure remote monitoring and control of one Easy UPS Online through the easy-to-use web browser interface, via EcoStruxure⢠IT Software or another SNMP-enabled system.,The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins.,Best-in-class security compliance keeps sensitive data secure. ,The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£257.55 Exc. VAT
£309.06 Inc. VAT

Overview

Presentation

The Network Management Card for Easy UPS On-Line (AP9544) enables secure remote monitoring and control of one Easy UPS Online through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system.

A 12-month Secure NMC Subscription, that allows the customer to access future firmware updates, is included with the purchase of the card*. Upon expiration of the provided Secure NMC Subscription the purchase of a new Secure NMC Subscription is required to access future firmware updates.

*The NMC Firmware must be V2.5 or later. Find the latest Firmware in the Software and Firmware section below.​​​​​​​
Lead time Usually in Stock

Main

range of product Network Management Cards
Range compatibility Easy UPS On-Line,Easy UPS 1 Ph On-Line
product or component type Device monitoring and management
Provided equipment Micro-USB cable,Installation manual
Number of input phases 1
Standards CISPR 32,VCCI class A,ICES-003,EN 55024,EN 61000-4-2,EN 61000-4-3,EN 61000-4-4,EN 61000-4-5,EN 61000-4-6,EN 61000-4-8,EN 61000-6-2,EN/IEC 62040-2

Physical

net weight 0.05 kg
Width 5.2 cm
Height 4.4 cm
Depth 8.0 cm

Conformance

Product certifications FCC Class A,AS/NZS,UK PSTI

Environmental

Storage Relative Humidity 0…95 %
Relative humidity 0…95 %
Ambient air temperature for storage -15…65 °C
Ambient air temperature for operation -5…45 °C
Storage altitude 0.0000000000…15240.0000000000 m
Operating altitude 0...10000 ft

Communications & Management

Communication network type 10/100/1000BASE-T
Authentication Radius
communication port protocol HTTP over secure sockets,Layer (HTTPS),SSH,FTP,HTTP,SNMP,DHCP,BOOTP (Bootstrap Protocol),TCP/IP

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.600 cm
Package 1 Width 16.500 cm
Package 1 Length 23.000 cm
Package 1 Weight 302.000 g
Unit Type of Package 2 P06
Number of Units in Package 2 44
Package 2 Height 68.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 21.000 kg

Contractual warranty

Warranty 2 years repair or replace

Documentation

Product Datasheet

User guide

Brochure

Environmental disclosure
