Schneider Electric

ASISAFEMON2

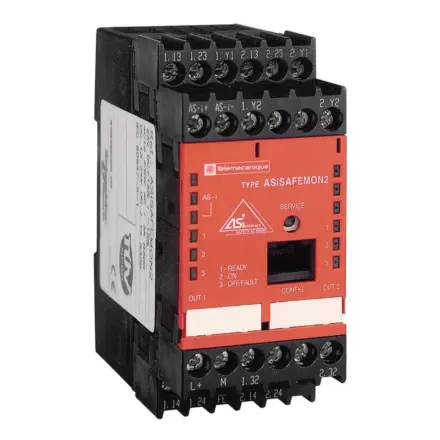

ASISAFEMON2 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ASISAFEMON2 Schneider Electric

ASISAFEMON2 Schneider Electric - AS Interface Safety at work monitor, AS Interface, 2NO+2NO, solid state output, external fuse protection

Free Delivery to UK Mainland on orders over £25

Main

product or component type AS-Interface Safety at work monitor
Actuator sensor interface profile [AS-i] 7.F
Product specific application For basic monitoring of safety devices
Number of safety circuits 2 NO + 2 NO
Discrete output number 2

Complementary

Output type Solid state
[Us] rated supply voltage 24 V DC +/- 15 %
Current consumption 44 mA for AS-Interface line
[Ie] rated operational current 0.2 A
Response time < 40 ms
Maximum pick up duration 10000 ms
Input type Opto-electronic coupler, 10 mA at 24 V for protection control function,Opto-electronic coupler, 10 mA at 24 V for start function
Discrete output type PNP transistor output(s), 0.2 mA
Protection type External fuse
Maximum associated fuse rating 4 A
Enclosure material Polyamide PA66
Fixing mode Clip-on, mounting on symmetrical DIN rail conforming to EN 50022
Local signalling 2 LEDs (green) for AS-Interface line supply,2 LEDs (green) for safety outputs closed,2 LEDs (red) for AS-Interface line fault,2 LEDs (red) for safety outputs open (on steady) or output error (flashing),2 LEDs (yellow) for restart signal
net weight 0.45 kg

Environment

Standards EN 954-1 category 4,ISO 13851,IEC 61508,ISO 13849-1 category 4,EN/IEC 61496-1,EN 61000-6-2,EN 50081-2,EN 574,EN/IEC 60204-1,EN 50295,EN/IEC 60947-5-1
Product certifications UL,CSA,TÜV
IP degree of protection IP20
Ambient air temperature for operation -20…60 °C
Ambient air temperature for storage -30…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.3 cm
Package 1 Width 5.3 cm
Package 1 Length 11.0 cm
Package 1 Weight 417.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.053 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

CAD
