Schneider Electric

ATV21HU22N4

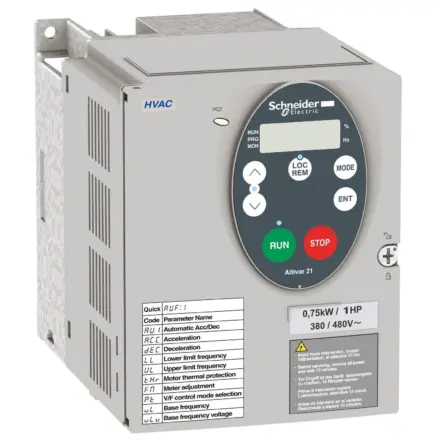

ATV21HU22N4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ATV21HU22N4 Schneider Electric

ATV21HU22N4 Schneider Electric - variable speed drive - ATV21 - 2.2kW 3HP - 480V - EMC filter class A - IP20

Free Delivery to UK Mainland on orders over £25

Main

range of product Altivar 21
product or component type Variable speed drive
Product destination Asynchronous motors
Product specific application Pumps and fans in HVAC
Assembly style With heat sink
Component name ATV21
EMC filter Class A EMC filter integrated
power supply voltage 380...480 V - 15...10 %
Network number of phases 3 phases
Motor power kW 2.2 kW
Motor power hp 3 hp
Line current 3.6 A at 480 V,4.6 A at 380 V
Speed range 1…10
Transient overtorque 120 % of nominal motor torque +/- 10 % for 60 s
Asynchronous motor control profile Energy saving ratio,Quadratic voltage/frequency ratio,Current flux vector control (FVC) without speed feedback,Constant voltage/frequency ratio,Constant voltage/frequency ratio with automatic IR compensation
communication port protocol Modbus
Type of polarization No impedance
IP degree of protection IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529,IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1,IP21 conforming to EN/IEC 60529,IP21 conforming to EN/IEC 61800-5-1,IP41 on upper part conforming to EN/IEC 60529,IP41 on upper part conforming to EN/IEC 61800-5-1
Option card Communication card for APOGEE FLN,Communication card for BACnet,Communication card for LonWorks,Communication card for METASYS N2

Complementary

power supply voltage limits 323…528 V
power supply frequency 50...60 Hz - 5...5 %
power supply frequency limits 47.5…63 Hz
Apparent power 3.9 kVA at 380 V
maximum prospective line Isc 5 kA
maximum continuous output current 5.1 A at 380 V,5.1 A at 460 V
Maximum transient current 5.6 A for 60 s
Speed drive output frequency 0.5…200 Hz
Nominal switching frequency 12 kHz
Switching frequency 12...16 kHz with derating factor,6...16 kHz adjustable
Speed accuracy +/- 10 % of nominal slip for 0.2 Tn to Tn torque variation
Torque accuracy +/- 15 %
Regulation loop Adjustable PI regulator
Motor slip compensation Not available in voltage/frequency ratio motor control,Automatic whatever the load,Adjustable
diagnostic 1 LED (red) for DC bus energized
Output voltage <= power supply voltage
Insulation Electrical between power and control
recommended type of cable for mounting in an enclosure With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC,Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC,Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Electrical connection L1/R, L2/S, L3/T: terminal 6 mm² / AWG 10,VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14
Tightening torque 1.3 N.m, 11.5 lb.in (L1/R, L2/S, L3/T),0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Supply Internal supply: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection,Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Analogue input number 2
Analogue input type VIA switch-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits,VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits,VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm,VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits
Sampling duration F 2 ms +/- 0.5 ms for discrete input(s),R 2 ms +/- 0.5 ms for discrete input(s),RES 2 ms +/- 0.5 ms for discrete input(s),VIA 2 ms +/- 0.5 ms for analog input(s),VIB 2 ms +/- 0.5 ms for analog input(s)
Response time FLA, FLC 7 ms +/- 0.5 ms for discrete output(s),FLB, FLC 7 ms +/- 0.5 ms for discrete output(s),FM 2 ms +/- 0.5 ms for analog output(s),RY, RC 7 ms +/- 0.5 ms for discrete output(s)
Accuracy +/- 1 % (FM) for a temperature variation 60 °C,+/- 0.6 % (VIA) for a temperature variation 60 °C,+/- 0.6 % (VIB) for a temperature variation 60 °C
Linearity error FM: +/- 0.2 % for output,VIA: +/- 0.15 % of maximum value for input,VIB: +/- 0.15 % of maximum value for input
Analogue output number 1
Analogue output type FM switch-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits,FM switch-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits
Discrete output number 2
Discrete output type Configurable relay logic: (FLA, FLC) NO - 100000 cycles,Configurable relay logic: (FLB, FLC) NC - 100000 cycles,Configurable relay logic: (RY, RC) NO - 100000 cycles
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Maximum switching current 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R),2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R),5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R),5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
Discrete input type F programmable 24 V DC, with level 1 PLC, impedance: 3500 Ohm,R programmable 24 V DC, with level 1 PLC, impedance: 3500 Ohm,RES programmable 24 V DC, with level 1 PLC, impedance: 3500 Ohm
Discrete input logic Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1),Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)
Acceleration and deceleration ramps Automatic based on the load,Linear adjustable separately from 0.01 to 3200 s
Braking to standstill By DC injection
Protection type Against input phase loss: drive,Break on the control circuit: drive,Input phase breaks: drive,Line supply overvoltage and undervoltage: drive,Line supply undervoltage: drive,Overcurrent between output phases and earth: drive,Overheating protection: drive,Overvoltages on the DC bus: drive,Short-circuit between motor phases: drive,Thermal power stage: drive,Motor phase break: motor,Thermal protection: motor,With PTC probes: motor,Against exceeding limit speed: drive
Insulation resistance >= 1 mOhm 500 V DC for 1 minute
Frequency resolution Analog input: 0.024/50 Hz,Display unit: 0.1 Hz
Connector type 1 RJ45
Physical interface 2-wire RS 485
Transmission frame RTU
Transmission rate 9600 bps or 19200 bps
Data format 8 bits, 1 stop, odd even or no configurable parity
Number of addresses 1…247
Communication service Monitoring inhibitable,Time out setting from 0.1 to 100 s,Read holding registers (03) 2 words maximum,Read device identification (43),Write multiple registers (16) 2 words maximum,Write single register (06)
marking CE
Operating position Vertical +/- 10 degree
Height 143 mm
Width 107 mm
Depth 150 mm
net weight 2 kg

Environment

Noise level 51 dB conforming to 86/188/EEC
Dielectric strength 3535 V DC between earth and power terminals,5092 V DC between control and power terminals
Electromagnetic compatibility 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5,Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6,Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4,Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2,Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3,Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Standards EN 61800-3 environments 1 category C1,EN 61800-3,IEC 61800-3,IEC 61800-5-1,IEC 61800-3 category C3,IEC 61800-3 environments 1 category C3,EN 61800-3 category C3,UL Type 1,IEC 61800-3 environments 1 category C1,EN 61800-5-1,IEC 61800-3 environments 2 category C1,EN 61800-3 environments 2 category C2,EN 61800-3 environments 2 category C3,IEC 61800-3 environments 1 category C2,EN 61800-3 environments 1 category C3,IEC 61800-3 environments 2 category C2,EN 61800-3 environments 2 category C1,EN 61800-3 category C2,IEC 61800-3 category C2,EN 61800-3 environments 1 category C2,EN 55011 class A group 1,IEC 61800-3 environments 2 category C3
Product certifications CSA,UL,NOM 117,C-Tick
Vibration resistance 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8,1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Pollution degree 3 conforming to IEC 61800-5-1
Environmental characteristic Classes 3C1 conforming to IEC 60721-3-3,Classes 3S2 conforming to IEC 60721-3-3
Relative humidity 5…95 % without condensation conforming to IEC 60068-2-3,5…95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation -10…40 °C (without derating),40…50 °C (with derating factor)
Ambient air temperature for storage -25…70 °C
Operating altitude <= 2000 m,1000...3000 m limited to 2000 m for the Corner Grounded distribution network

Contractual warranty

Warranty 18 months
