Schneider Electric

BMEAHI0812

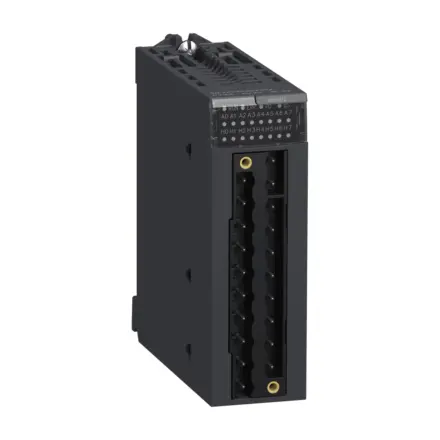

BMEAHI0812 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for BMEAHI0812 Schneider Electric

BMEAHI0812 Schneider Electric - analog input module X80 - 8 inputs HART - current Isolated

Extended Description for BMEAHI0812 Schneider Electric

BMEAHI0812 Schneider Electric - This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC).,This analogue input module has 8 inputs with 15bit + sign input resolution.,It is an input module with a current of 4mA to 20mA input type with I/O mapping function.,This product is robust, high quality and based on the latest innovative technology.,It is furnished with Telefast and 20-way terminal block for electrical connection.,It weighs 0.233kg.,It is suitable for medium to large process applications.,It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.,This product is compatible with BMEP58xxx processor, BMXFTB20xxx terminal block, ABE7CPA31, BMEXBPxxx backplane, ABE7CPA02, ABE7CPA03, BMECRA31210 head module.,Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£904.67 Exc. VAT
£1,085.60 Inc. VAT

Main

range of product Modicon X80
product or component type Analog input module

Complementary

Application specific I/O HART
Product compatibility BMEP58... processor,BMXFTB20... terminal block,ABE7CPA31,BMEXBP... backplane,ABE7CPA02,ABE7CPA03,Head module BMECRA31210
Electrical connection 20 ways terminal block, Telefast
Isolation between channels Isolated
Analogue input number 8
Analogue input type Current 4...20 mA
Analogue input resolution 15 bits + sign
Input impedance 250 Ohm internally protective resistor (3.6 to 50 Ohm)
Measurement error 0.15 % of full scale 25 °C,<= 0.3 % of full scale 0...60 °C
Temperature drift 50 ppm/°C
Isolation voltage 1000 V DC for 60 s between channels,1400 V DC for 60 s between channels and ground,1400 V DC for 60 s between channels and bus
Checks Broken wire detection
Topology Point-to-point
Function available I/O mapping
net weight 0.233 kg

Environment

Ambient air temperature for operation 0…60 °C
Directives 2014/35/EU - low voltage directive,2014/30/EU - electromagnetic compatibility
Product certifications CE,RCM,CSA,EAC,Merchant Navy,UL
Standards EN/IEC 61010-2-201,EN/IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.700 cm
Package 1 Width 11.200 cm
Package 1 Length 12.000 cm
Package 1 Weight 229.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.770 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
