Schneider Electric

BMEP586040S

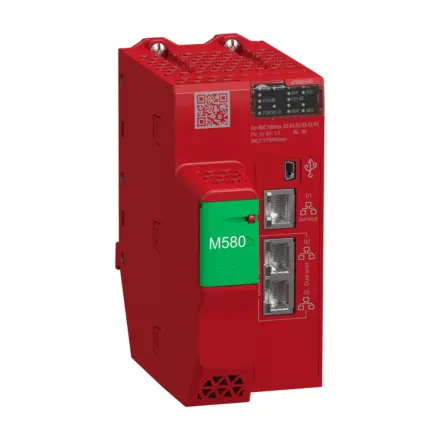

BMEP586040S Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for BMEP586040S Schneider Electric

BMEP586040S Schneider Electric - Standalone Safety processor, Modicon M580, 64MB, 61 Ethernet devices, 31 Remote I/O racks (X80 & Quantum), 128 CIP Safety devices

Extended Description for BMEP586040S Schneider Electric

BMEP586040S Schneider Electric - This standalone Safety processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet.,This product offers a maximum of 8 local rack and 31 remote rack configuration with up to 37888 discrete I/O channels and 9472 analog I/O channels.,This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F.,This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months.,It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console.,It has an integrated RAM of 64MB for program, 10kb for system memory, expandable flash of 4GB for data storage and 16MB for program Safety and 1024kb for data Safety. This product is IP20 rated and offers 718494 hours of MTBF.,This red module has a weight of 0.849kg and dimensions of 64x130x135mm.,This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers.,This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications.,This processor is compatible with Modicon X80 modules and Quantum IO remote racks.,The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack.,This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software.,Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£10,064.23 Exc. VAT
£12,077.08 Inc. VAT

Main

range of product Modicon M580
product or component type Processor module
Impregnation material Conformal coated

Complementary

Number of racks 8
Local I/O processor capacity (discrete) 6144 I/O
Local I/O processor capacity (analog) 1536 I/O
Number of application specific channel (local rack) 216
Application specific I/O Counter,Motion control,SSI encoder,Accurate time stamping,Serial link,HART
Checks Process control,Safety control
Control channels Programmable loops
Integrated connection type 1 Ethernet TCP/IP for service port,2 Ethernet TCP/IP for device network,USB type mini B,1 Ethernet
Number of remote I/O station 31 - 2 rack(s) per remote drop
Number of distributed equipment 64
Number of CIP safety IO devices 128
Communication module processor capacity 4 Ethernet communication module,16 AS-Interface module
Communication service RIO scanner,DIO scanner
Memory description Expandable flash, 4 GB for data storage,Integrated RAM, 10 kB for system memory,Integrated RAM, 64 MB for program and data,Integrated RAM, 16 MB for program safety,Integrated RAM, 1024 kB for data safety
Application structure 1 master task,1 periodic fast task,1 periodic safe task
Cybersecurity Achilles certified,DoS prevention,IPSec,SNMP logging,Syslog protocol support,Audit trail,Embedded firewall,Firmware signature,Password protection,Port hardening,Security log
Number of instructions per ms 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic,50 Kinst/ms 100 % Boolean
Current consumption 300 mA at 24 V DC
MTBF reliability 775000 H
marking CE

Environment

Vibration resistance 3 gn
Shock resistance 15 gn
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C
Operating altitude 0...2000 m,2000...5000 m with derating factor
Relative humidity 5…95 % at 55 °C without condensation
IP degree of protection IP20
Directives 2014/30/EU - electromagnetic compatibility,2006/42/EC - machinery,2014/34/EU - ATEX directive
Product certifications CE,UL,CSA,RCM,EAC,Merchant Navy,ATEX zone 2/22,IECEx zone 2/22,TÜV
Standards IEC 61131-2,IEC 61010-2-201,UL 61010-2-201,CSA C22.2 No 61010-2-201,IACS E10,EN/IEC 61000-6-5, interface type 1 and type 2,EN/IEC 61850-3, location G,IEC 60079-0
Environmental characteristic Hazardous location class I division 2,Gas resistant class Gx conforming to ISA S71.04,Gas resistant class 3C4 conforming to IEC 60721-3-3,Dust resistant class 3S4 conforming to IEC 60721-3-3,Sand resistant class 3S4 conforming to IEC 60721-3-3,Salt resistant level 2 conforming to IEC 68252,Mold growth resistant class 3B2 conforming to IEC 60721-3-3,Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Protective treatment Conformal coating
Safety level SIL 3 conforming to IEC 61508,SIL 3 conforming to IEC 61511,SILCL 3 conforming to IEC 62061,SILCL 3 conforming to ISO 13849-1 category 4,SIL 4 conforming to EN 50126,SIL 4 conforming to EN 50128,SIL 4 conforming to EN 50129
Supply Internal power supply via rack
Status LED 1 LED (green) processor running (RUN),1 LED (red) processor or system fault (ERR),1 LED (red) I/O module fault (I/O),1 LED (green) download in progress (DL),1 LED (red) memory card or CPU flash fault (BACKUP),1 LED (green/red) ETH MS (Ethernet port configuration status),1 LED (green/red) Eth NS (Ethernet network status),1 LED (green) processor in safety mode (SRUN),1 LED (green) processor in maintenance mode (SMOD),1 LED (red) I/O values overrided by user (FORCED IO)
net weight 0.849 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 888.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.808 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
