BMH1903P31A2A

BMH1903P31A2A Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for BMH1903P31A2A Schneider Electric

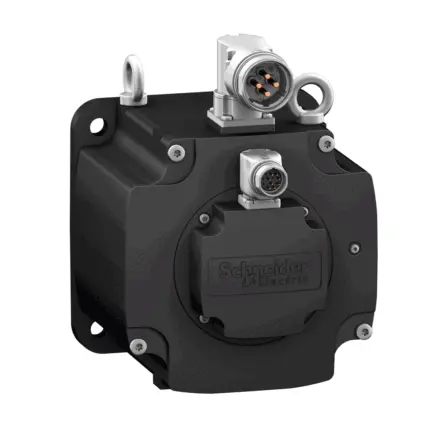

BMH1903P31A2A Schneider Electric - servo motor BMH - 65 Nm - 3500 rpm - keyed shaft - without brake - IP65/IP67

Extended Description for BMH1903P31A2A Schneider Electric

BMH1903P31A2A Schneider Electric - This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW.,The 10-pole servo motor features maximum mechanical speed of 3500RPM and keyed shaft end without holding brake.,It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution.,It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 36.1A and a continuous power of 7.95W.,The shaft dimensions are 38mm (diameter) x 80mm (length).,It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 and IP67 rated product.,The length of this product is 310mm and the centering collar dimensions are 4mm (depth) x 180mm (diameter) with 215mm mounting hole. It weighs 43kg.,This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D72N4 at 400V to 480V three phase.,It supports 190mm international standard flange mount with a natural convection cooling system.,Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality.,The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2,332.35 Exc. VAT
£2,798.83 Inc. VAT

Main

Device short name BMH
product or component type Servo motor
Maximum mechanical speed 3500 rpm
Continuous stall torque 43.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase,43.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase,57.6 N.m for LXM32MD85N4 at 32 A, 400 V, three phase,57.6 N.m for LXM32MD85N4 at 32 A, 480 V, three phase,65 N.m for LXM32MC10N4 at 40 A, 400 V, three phase,65 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Peak stall torque 122.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase,122.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase,141.3 N.m for LXM32MD85N4 at 32 A, 400 V, three phase,141.3 N.m for LXM32MD85N4 at 32 A, 480 V, three phase,162.7 N.m for LXM32MC10N4 at 40 A, 400 V, three phase,162.7 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal output power 5700 W for LXM32.D72N4 at 24 A, 400 V, three phase,5700 W for LXM32.D72N4 at 24 A, 480 V, three phase,7330 W for LXM32MD85N4 at 32 A, 400 V, three phase,7330 W for LXM32MD85N4 at 32 A, 480 V, three phase,7750 W for LXM32MC10N4 at 40 A, 400 V, three phase,7750 W for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal torque 36 N.m for LXM32.D72N4 at 24 A, 400 V, three phase,36 N.m for LXM32.D72N4 at 24 A, 480 V, three phase,35 N.m for LXM32MD85N4 at 32 A, 400 V, three phase,35 N.m for LXM32MD85N4 at 32 A, 480 V, three phase,37 N.m for LXM32MC10N4 at 40 A, 400 V, three phase,37 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal speed 1500 rpm for LXM32.D72N4 at 24 A, 400 V, three phase,1500 rpm for LXM32.D72N4 at 24 A, 480 V, three phase,2000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase,2000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase,2000 rpm for LXM32MD85N4 at 32 A, 400 V, three phase,2000 rpm for LXM32MD85N4 at 32 A, 480 V, three phase
Product compatibility LXM32.D72N4 at 400...480 V three phase
Shaft end Keyed
IP degree of protection IP65 standard,IP67 with IP67 kit
Speed feedback resolution 131072 points/turn
Holding brake Without
mounting support International standard flange
Electrical connection Rotatable right-angled connectors

Complementary

Range compatibility Lexium 32
[Us] rated supply voltage 480 V
Network number of phases Three phase
Continuous stall current 36.1 A
Continuous power 7.95 W
Maximum current Irms 72 A for LXM32.D72N4
Maximum permanent current 124.5 A
Second shaft Without second shaft end
Shaft diameter 38 mm
Shaft length 80 mm
Key width 70 mm
Feedback type Single turn SinCos Hiperface
Motor flange size 190 mm
Number of motor stacks 3
Torque constant 1.8 N.m/A at 120 °C
Back emf constant 129.2 V/krpm at 120 °C
Number of motor poles 10
Rotor inertia 194.1 kg.cm²
Stator resistance 0.13 Ohm at 20 °C
Stator inductance 3.62 mH at 20 °C
Stator electrical time constant 27.8 ms at 20 °C
Maximum radial force Fr 4500 N at 1000 rpm
Maximum axial force Fa 0.2 x Fr
Type of cooling Natural convection
Length 310 mm
Centring collar diameter 180 mm
Centring collar depth 4 mm
Number of mounting holes 4
Mounting holes diameter 14 mm
Circle diameter of the mounting holes 215 mm
net weight 43 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 40.0 cm
Package 1 Length 79.5 cm
Package 1 Weight 45.0 kg
