BMXDDO1602

BMXDDO1602 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for BMXDDO1602 Schneider Electric

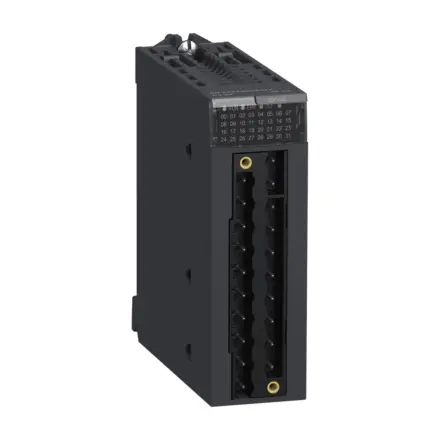

BMXDDO1602 Schneider Electric - discrete output module X80 - 16 outputs - 24 V DC positive

Extended Description for BMXDDO1602 Schneider Electric

BMXDDO1602 Schneider Electric - This discrete output module is part of the Modicon X80 modules.,It has 16 transistor protected outputs, 24V DC.,This module is connected via 20-way removable terminal block.,It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Free Delivery to UK Mainland on orders over £25

Manufacturer New

4 available
1 - 2 w.days
£225.43 Exc. VAT
£270.52 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£131.33 Exc. VAT
£157.60 Inc. VAT

Main

range of product Modicon X80
product or component type Discrete output module
Discrete output number 16 conforming to EN/IEC 61131-2
Discrete output type Solid state
Discrete output logic Positive
Discrete output voltage 24 V 19...30 V DC
Discrete output current 0.5 A

Complementary

Current per channel 0.625 A
Maximum current per module 10 A
Maximum leakage current 0.5 mA at state 0
Maximum voltage drop <1.2 V at state 1
Insulation resistance > 10 MOhm 500 V DC
Power dissipation in W 4 W
Response time on output 1.2 ms
Paralleling of outputs Yes : 2 maximum
Typical current consumption 79 mA at 3.3 V DC
MTBF reliability 410000 H
Protection type External fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
Output overload protection With electronic circuit breaker 1.5 In < Id < 2 In,With current limiter
Output overvoltage protection With transil diode
Output short-circuit protection With 2 A external fuse
Reverse polarity protection Reverse mounted diode
Voltage detection threshold < 14 V DC preactuator fault,> 18 V DC preactuator at state 0
Maximum tungsten load 6 W
Switching frequency 0.5/LI² Hz
Load impedance ohmic > 48 Ohm
Status LED 1 LED (green) module operating (RUN),1 LED per channel (green) channel diagnostic,1 LED (red) module error (ERR),1 LED (red) module I/O
net weight 0.12 kg

Environment

IP degree of protection IP20
Directives 2014/35/EU - low voltage directive,2014/30/EU - electromagnetic compatibility
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, output/ground,1500 V AC at 50/60 Hz 1 minute, output/internal logic
Vibration resistance 3 gn
Shock resistance 30 gn
Ambient air temperature for storage -40…85 °C
Ambient air temperature for operation 0…60 °C
Relative humidity 5…95 % at 55 °C without condensation
Operating altitude 0...2000 m,2000...5000 m with derating factor

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.56 cm
Package 1 Width 11.096 cm
Package 1 Length 11.759 cm
Package 1 Weight 160.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.04 kg
Unit Type of Package 3 P06
Number of Units in Package 3 240
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 59 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
